SPEED Engineering

Universal brake cooling for front and rear axle, Speed Engineering

No reviews
CHF 100.00
Product details
  • Vendor SPEED Engineering

Do you have questions about this product?

Ask an expert!

Description

For example, Porsche installs it on their vehicles ex works, but what about the rest?

The universal solution for most vehicles!

Most vehicles only have hinted cooling on the front axle and usually no cooling at all on the rear axle. Porsche, among others, has recognized that brake cooling is essential for the performance, durability, and lifespan of the brake and its components.

It is not possible to cover every vehicle and every axle with a tailor-made solution, which is why we have developed universal cooling and tested it intensively on various vehicles over several months.

The following diagram shows the measurement on the rear axle with the backing plate still installed:

Bremsenkühlung

A difference of up to 50°C in the peak over the measurement range can be seen here. However, if holes are drilled in the backing plate or it is removed, maximum performance is achieved with a delta of up to 200°C.

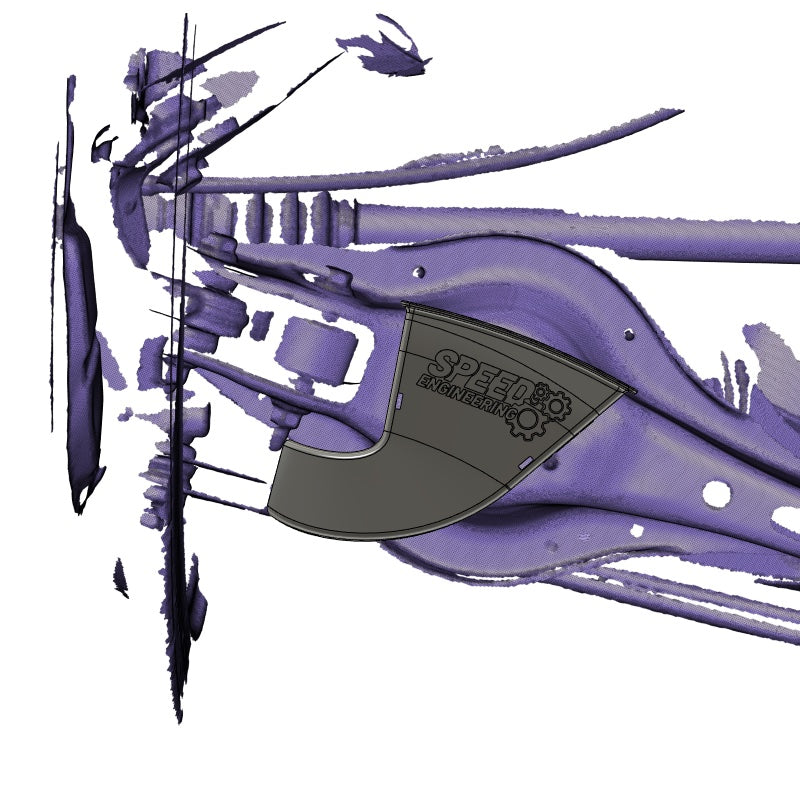

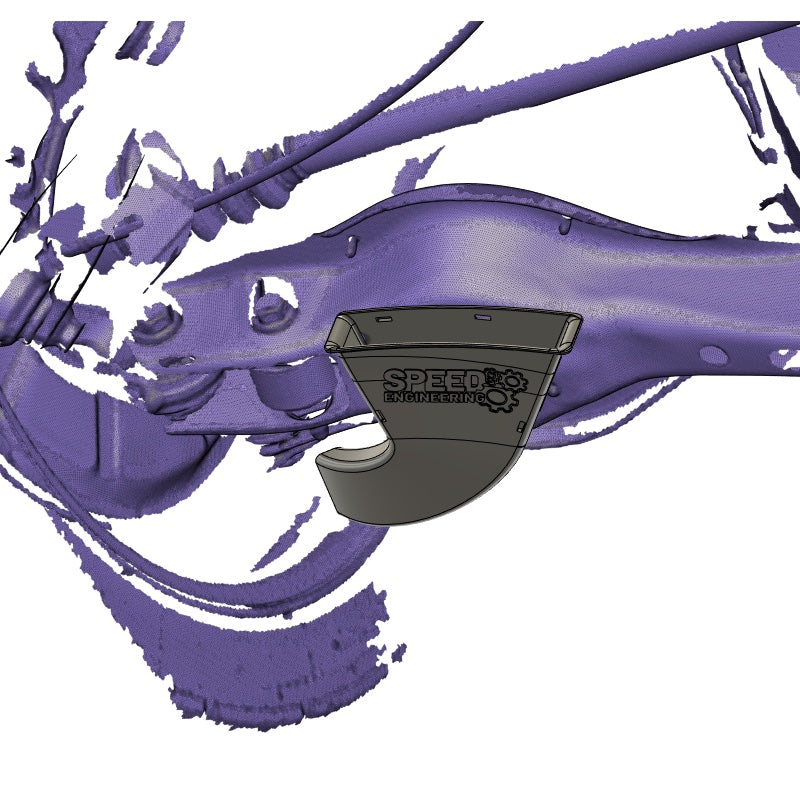

The geometry of the components is designed to fit most wishbones and can be installed plug-and-play with cable ties without a lift or removing the wheels. For some vehicles, minor adjustments to the cooling ducts may be necessary. The inlets are designed to be flat so that they do not represent the lowest point of the vehicle and redirect the airflow under the vehicle precisely to the center of the rotating wheel.

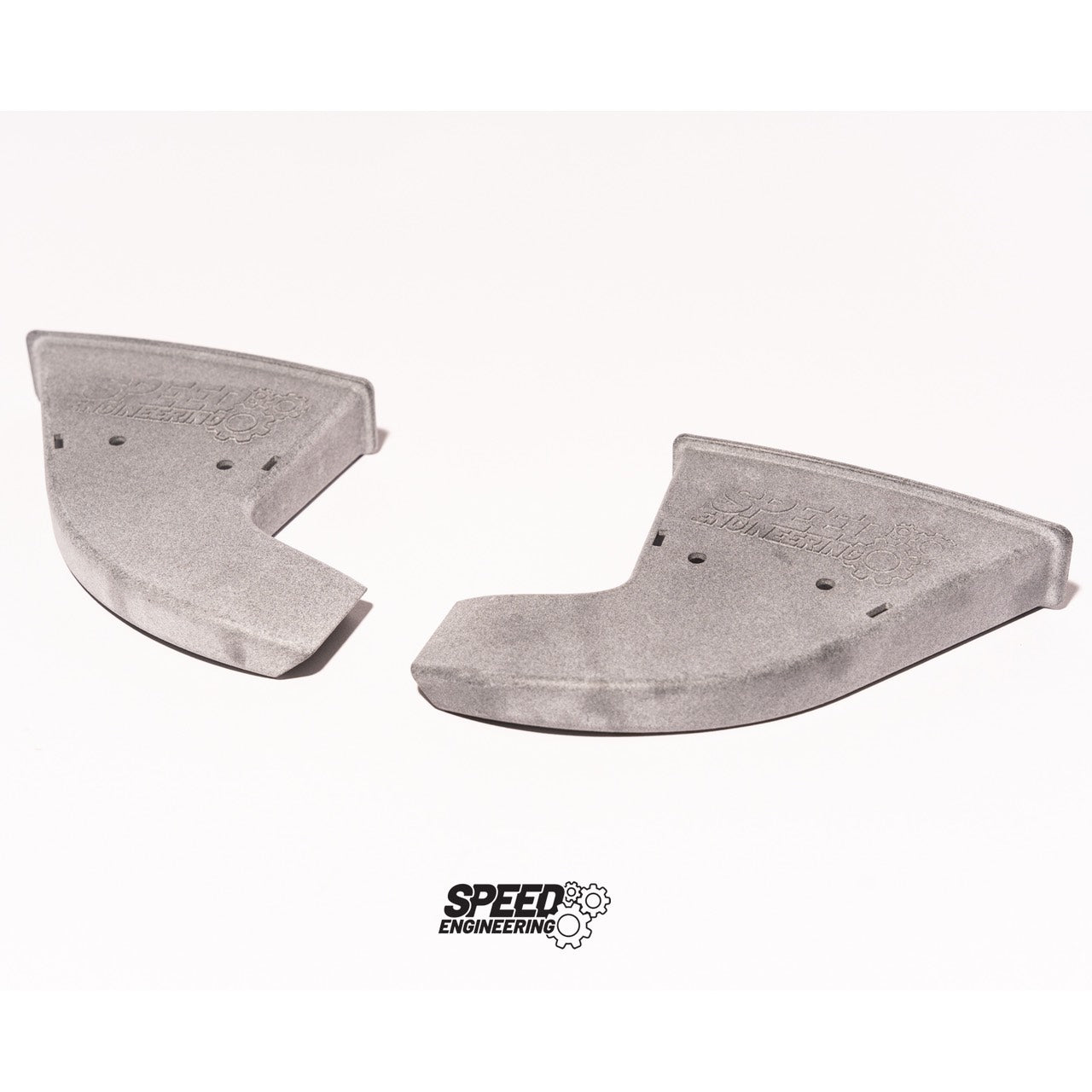

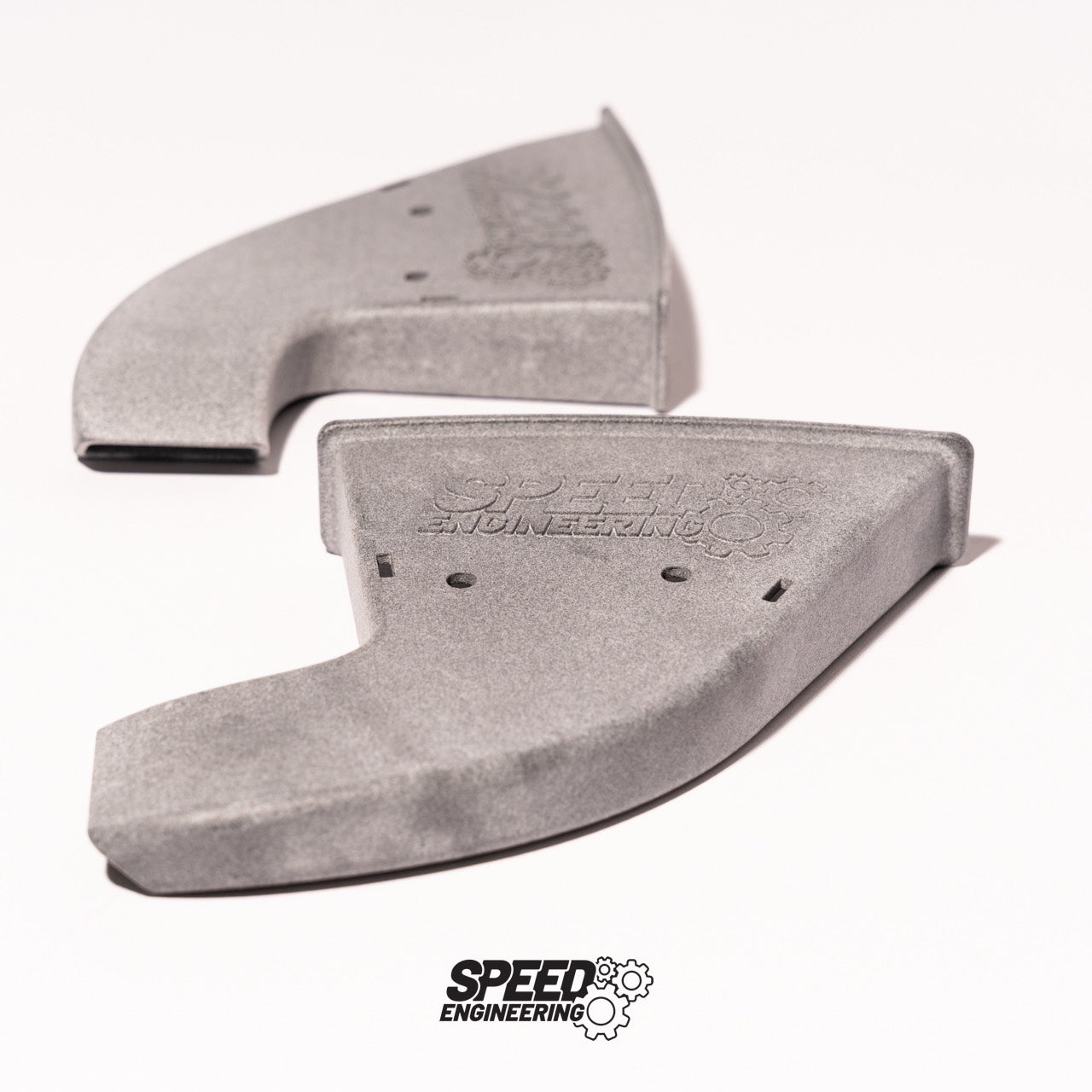

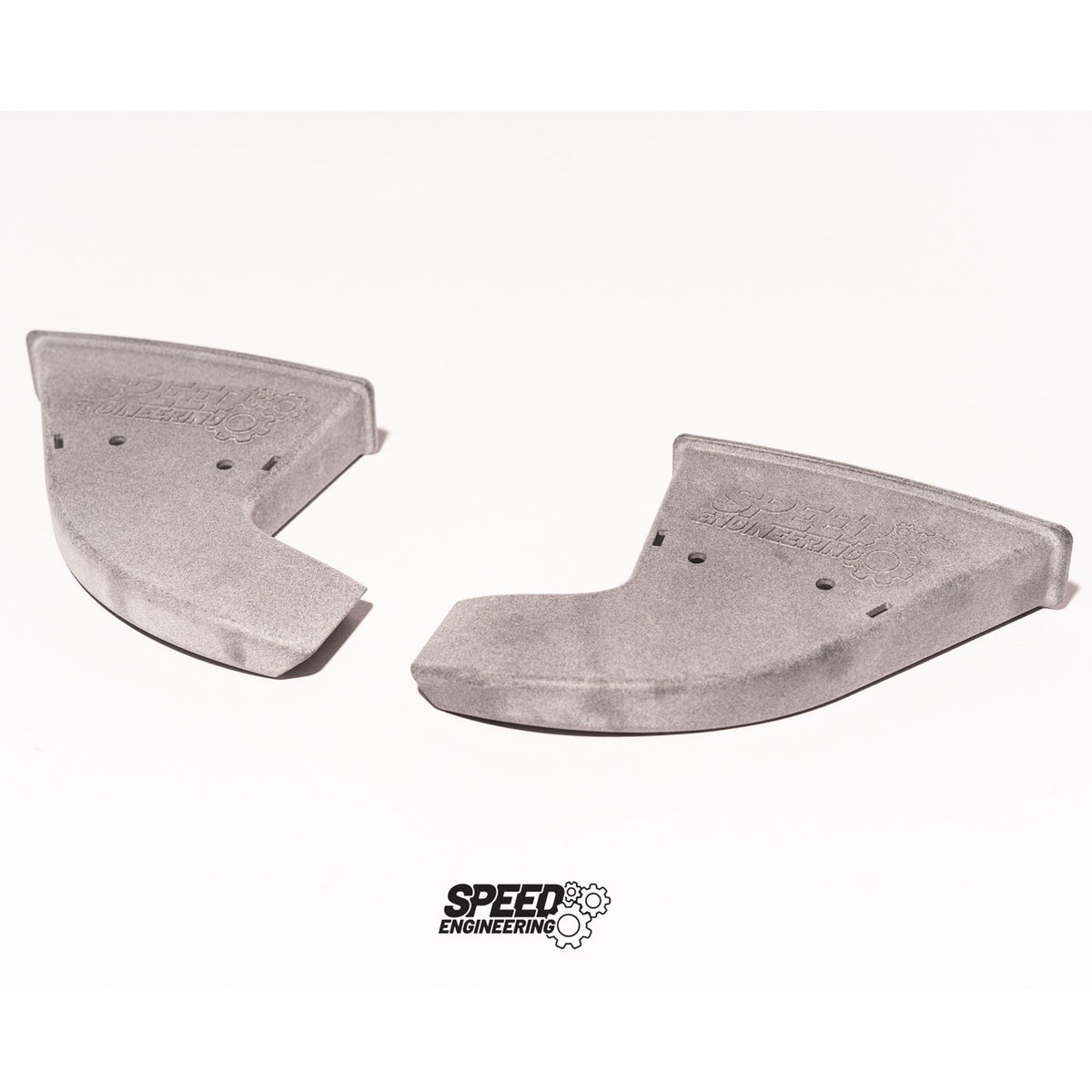

The components are made of PA12 plastic and already contain slots for fastening. The continuous tapering between the inlet and the outlet leads to an acceleration of the airflow at a constant volume and thus to a targeted outflow of air.

We have successfully tested the fitting accuracy on the following vehicles

  • all BMW rear axles
  • Toyota Supra MK5 rear axle
  • VW Golf 4,5,6,7,8 front axle + rear axle
  • Audi TT,S,RS rear axle
  • Scirocco (R) front axle + rear axle
  • Audi R8 front axle + rear axle
  • Renault Clio RS front axle
  • Ford Fiesta ST front axle
  • Ford Focus ST+RS front axle + rear axle
  • Toyota GR86, GT86 front axle + rear axle

 Included in delivery:

  • 1x Universal Brake Cooling L
  • 1x Universal Brake Cooling R
  • 6x cable ties

This item is suitable for

  • Most common vehicles, sometimes with minor adjustments

Motorsport parts without road approval. We explicitly point out that none of our products offered for sale are original vehicle parts from vehicle manufacturers BMW AG, M GmbH, MINI, VAG, or other vehicle manufacturers. The naming of vehicle brands and models merely serves to identify the product and assign it to the appropriate vehicle type.



NOTE:
If we do not explicitly mention a parts certificate (Teilegutachten) or a general operating permit (ABE) in the product text, it is a motorsport item that is not approved under the German Road Traffic Licensing Regulations (StVO) and therefore the operating license expires if no registration is made in accordance with § 21 StVO!

Please note that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.
