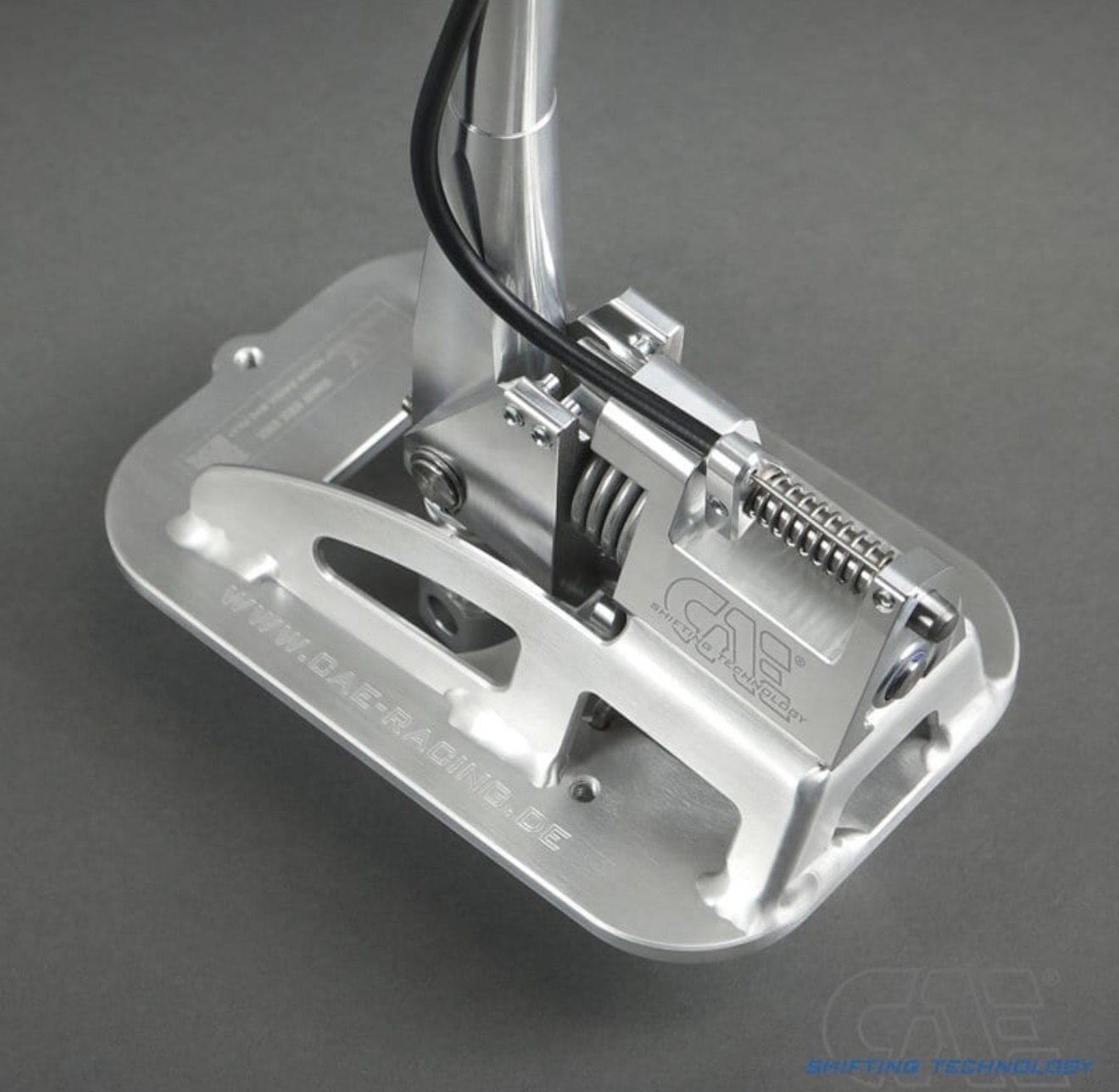

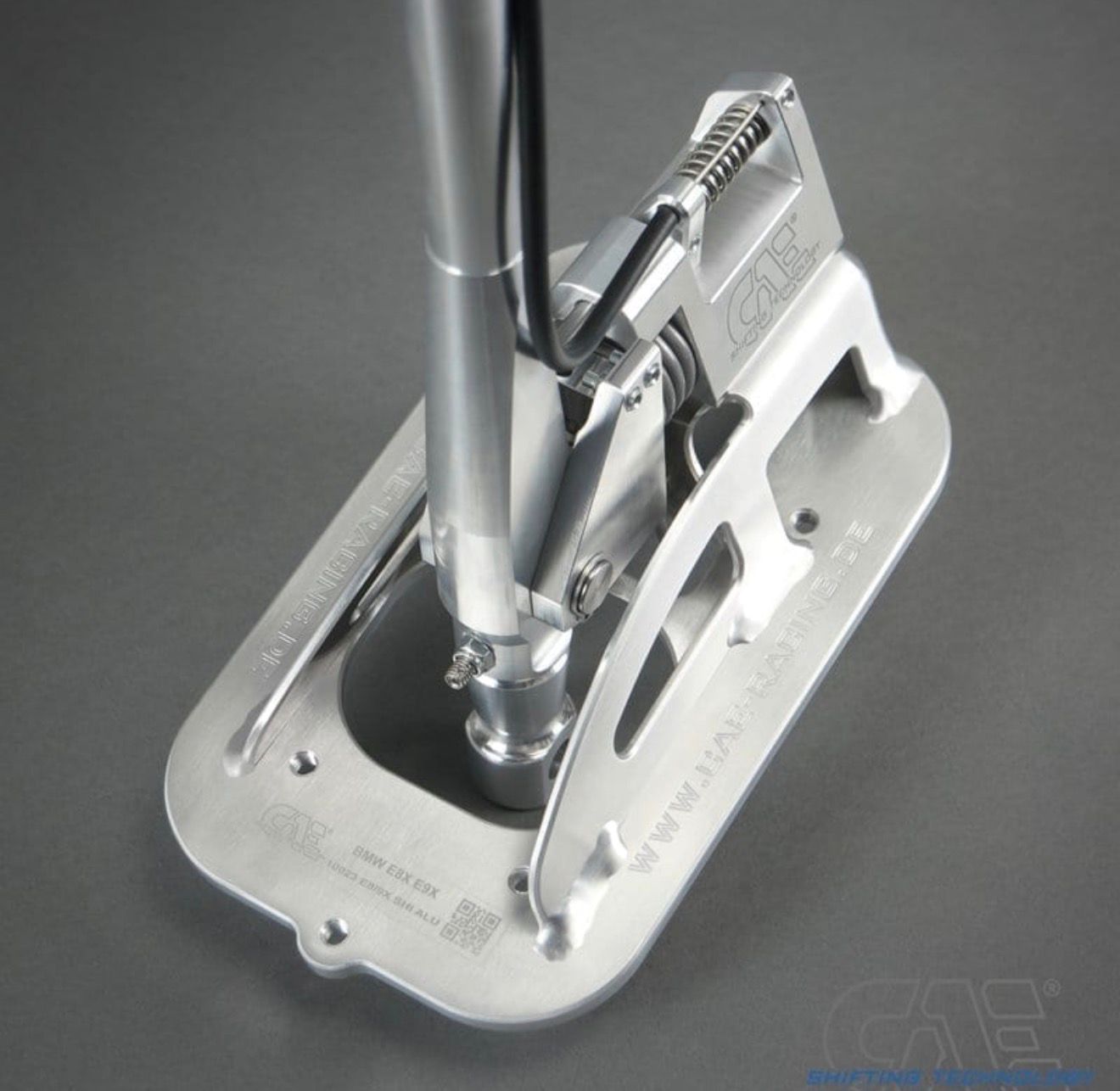

CAE Ultra Shifter – Optimized for motorsport with the following features:
- Vehicle-specific kit for BMW E8/9X with manual 6-speed gearbox, standard H-pattern. Vehicle assignment see table above
Installation without drilling in the center tunnel! - Short and super precise H-pattern shifts.
- The clutch system remains original.
- Racing look.

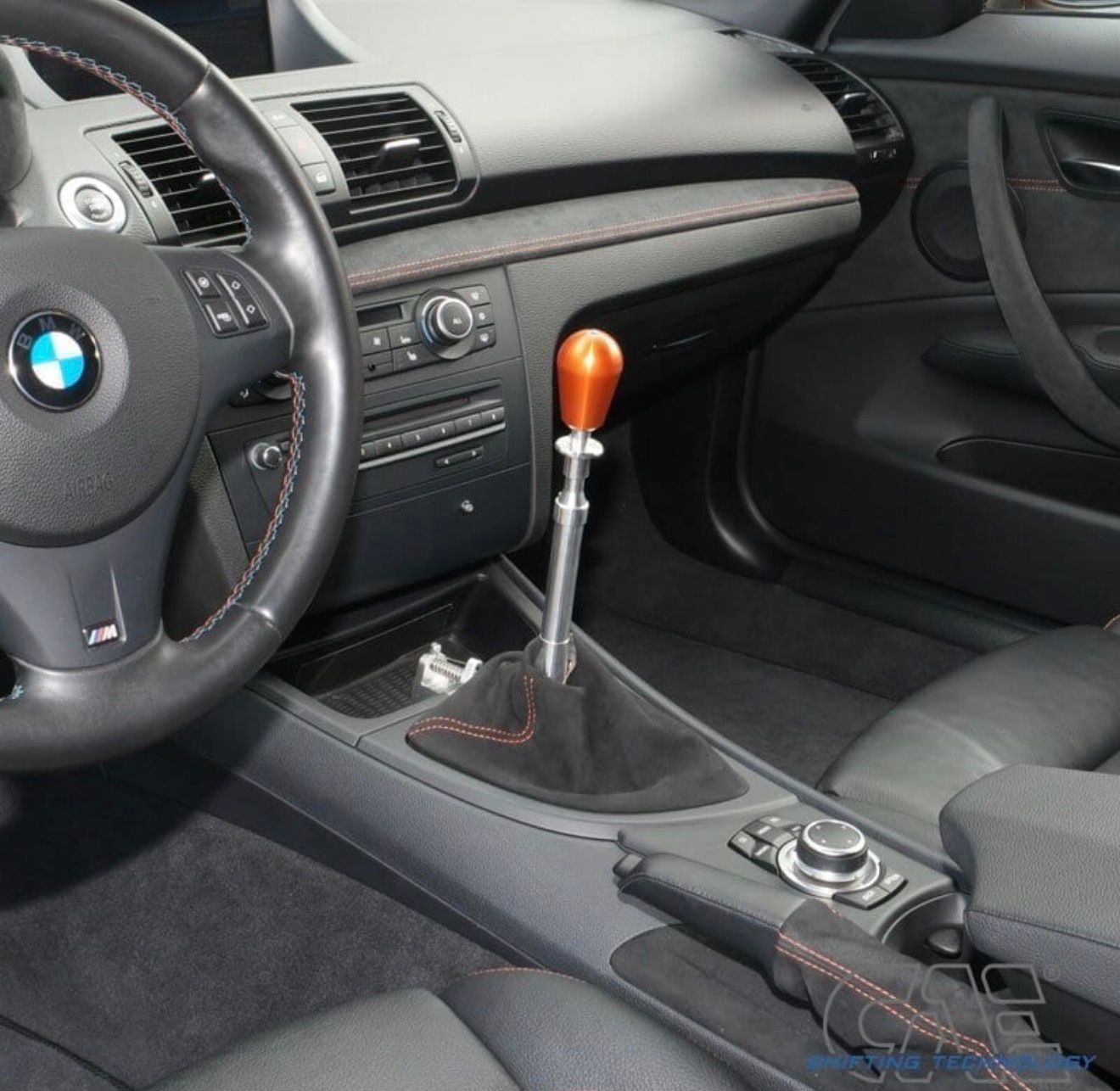

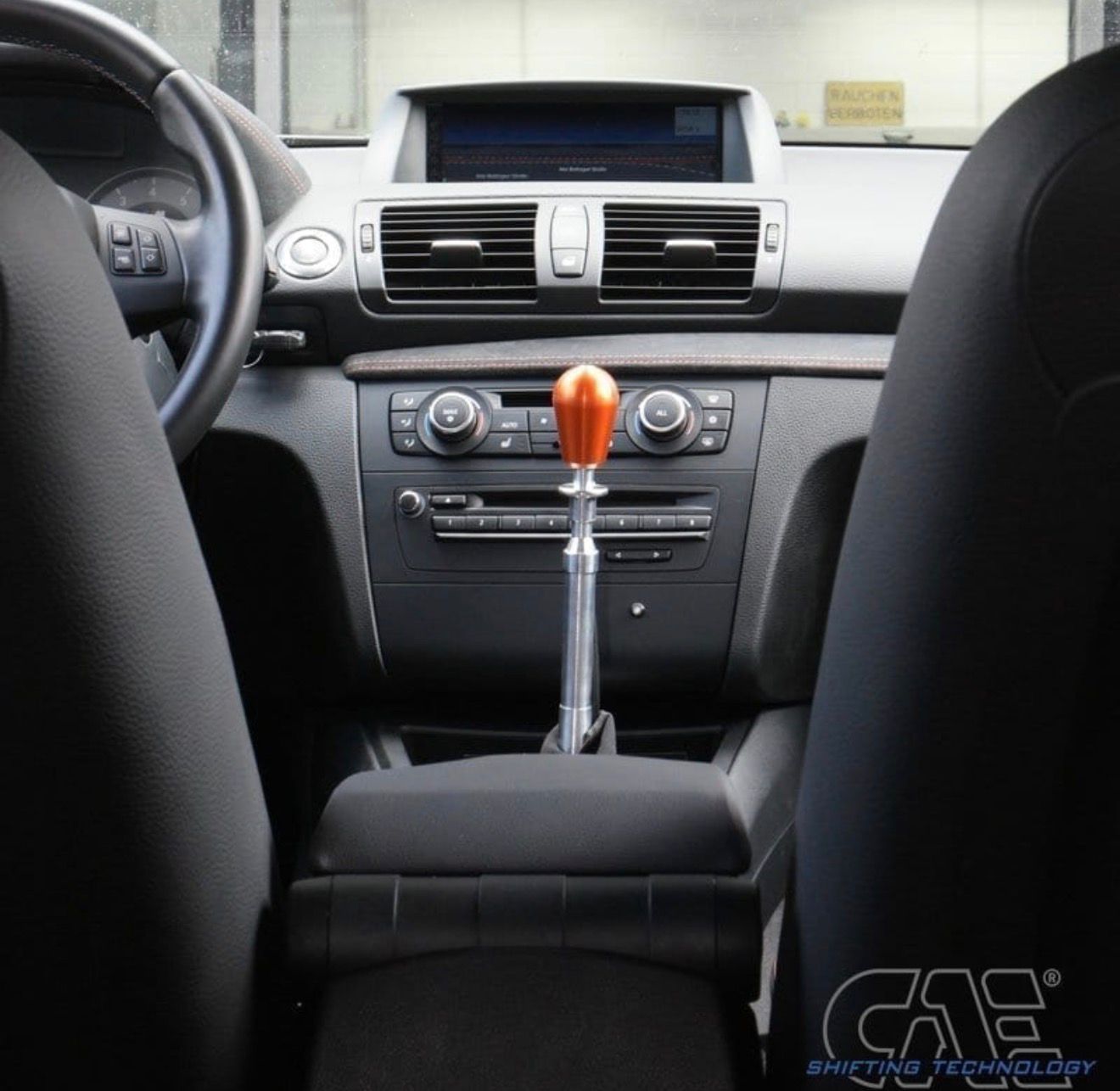

- Optimal ergonomics with a focus on motorsport: Perfect positioning of the gear knob close to the steering wheel. The H-shift pattern is within approx. 75 x 75 mm.
- Reverse gear lockout via cable pull from the gear lever. Accidental engagement of reverse gear is impossible. Reverse gear is unlocked by pulling up the sliding sleeve on the gear lever.
- Low weight and high stability: The milled and turned parts are made of 7075 aluminum, the sub-constructions from laser-cut, 3/6 mm thick AlMg3 aluminum sheet. The parts are joined using the TIG welding process and brushed bare for an optimal finish.
- Smooth gear changes under load or when cornering.
- Integrated center spring, providing perfect feedback when changing gears during upshifts and downshifts.
- Right/left stops and reverse gear stop separately adjustable.

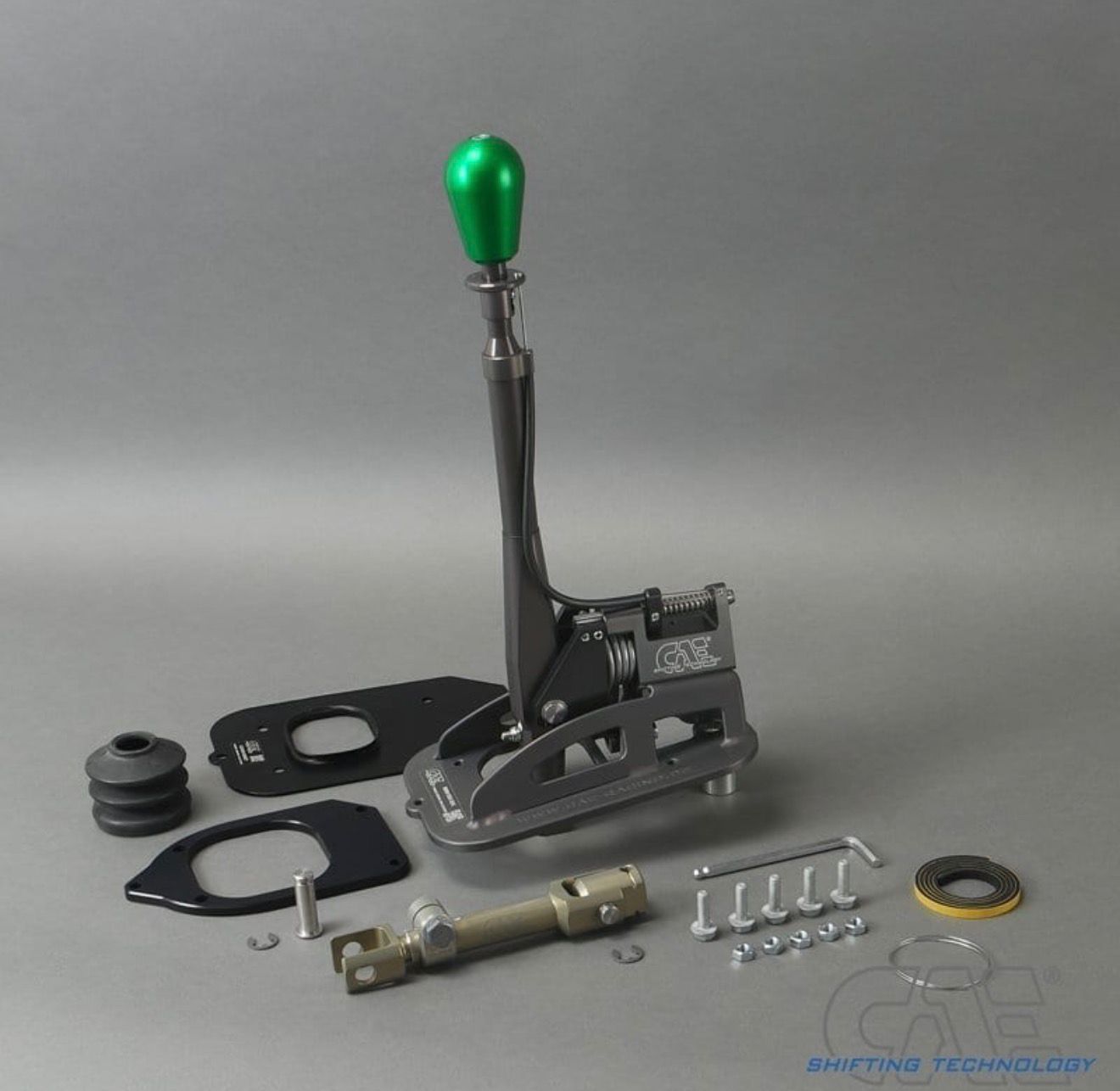

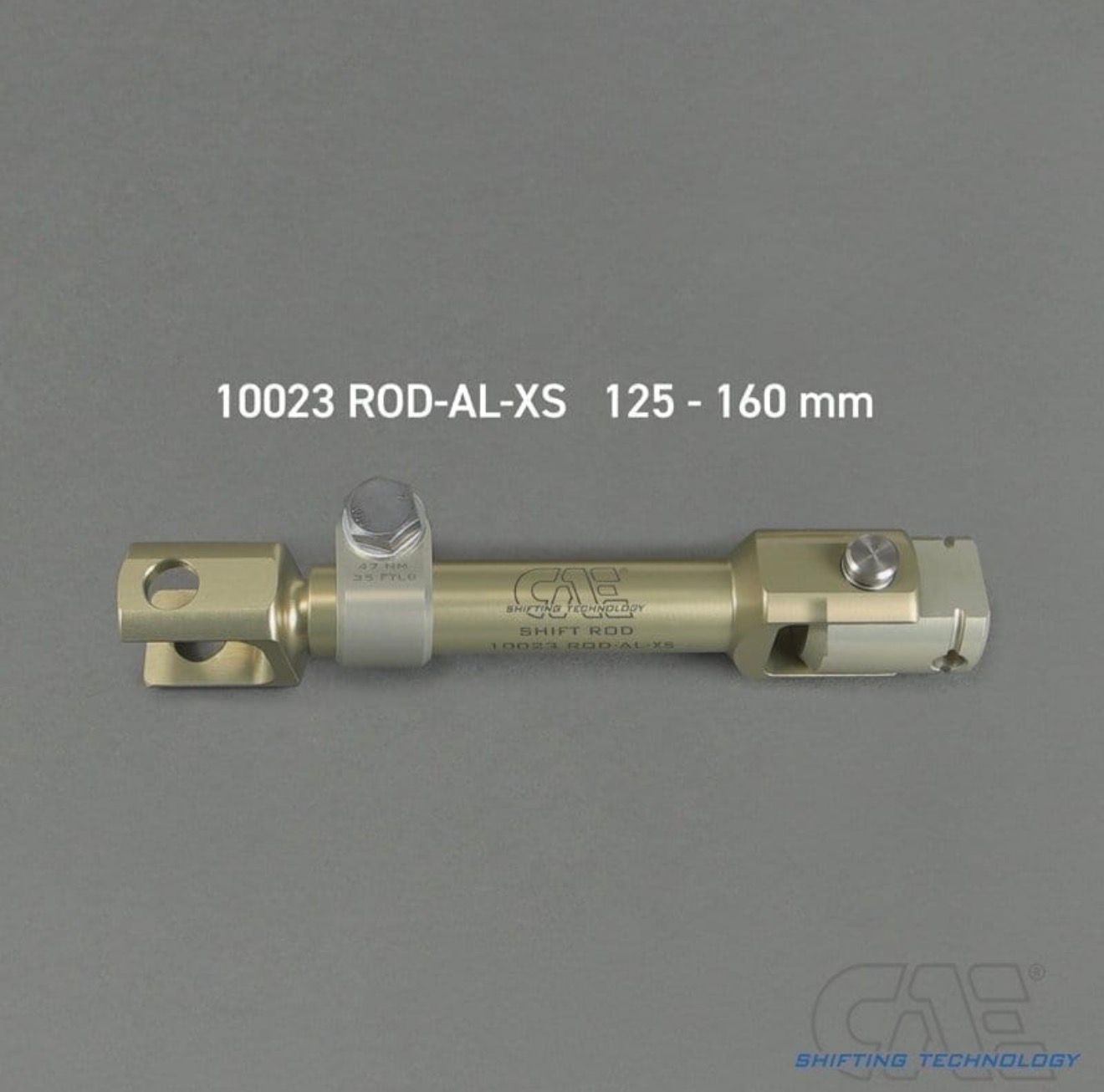

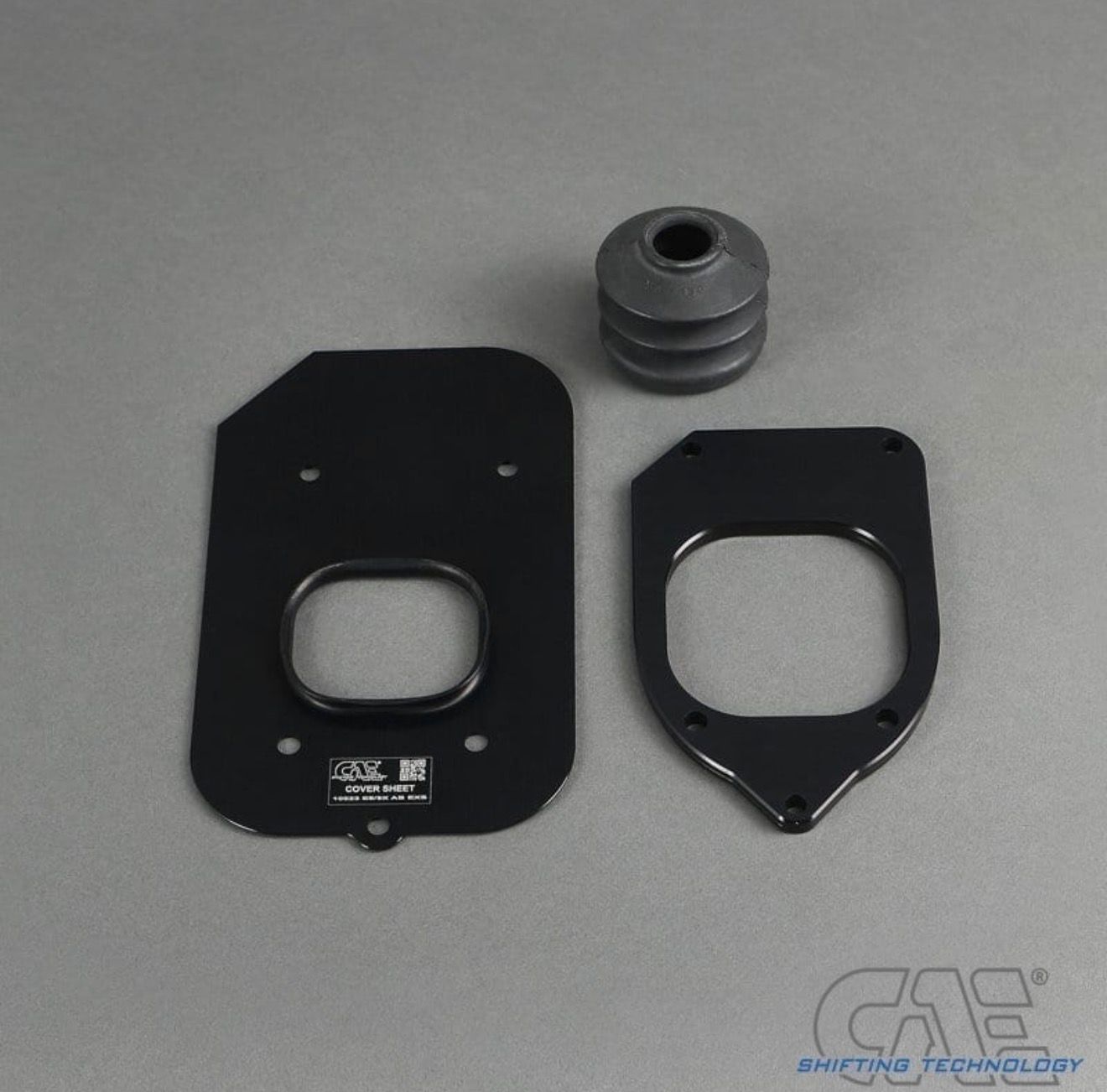

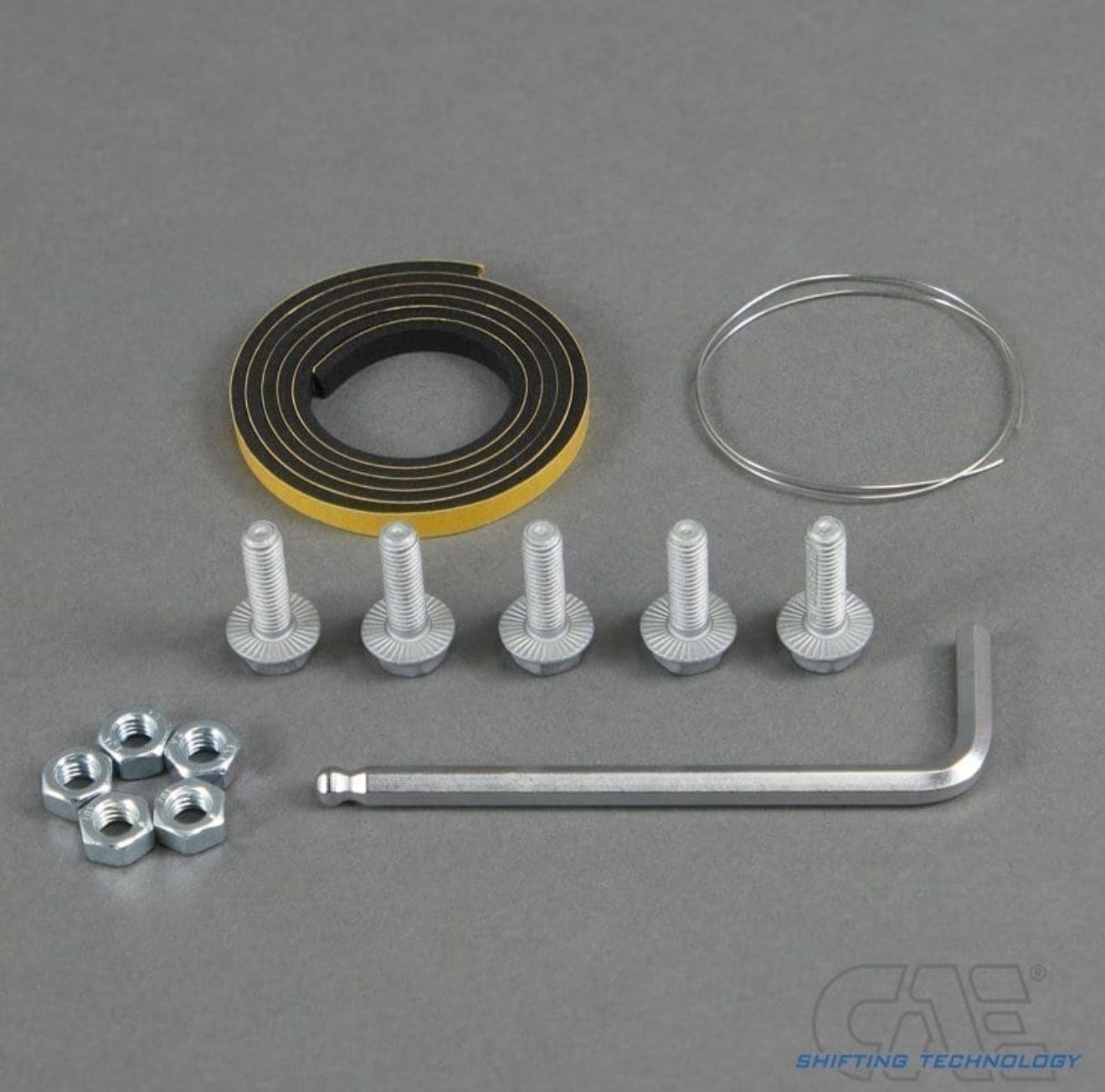

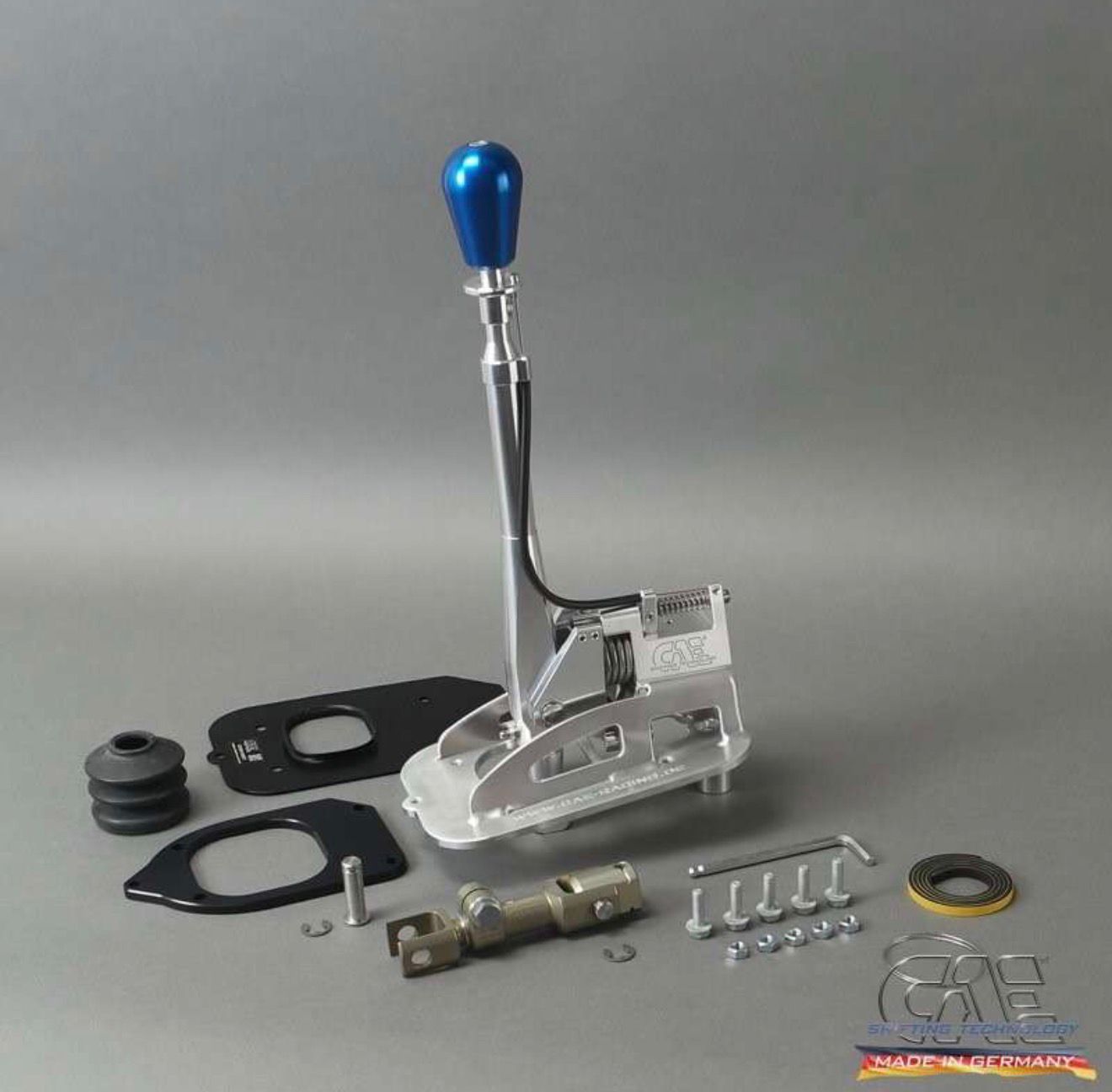

- Shifter is supplied as a complete kit with CAE 3XS, XXS, XS, S or L shift rod, including all small parts & mounting material

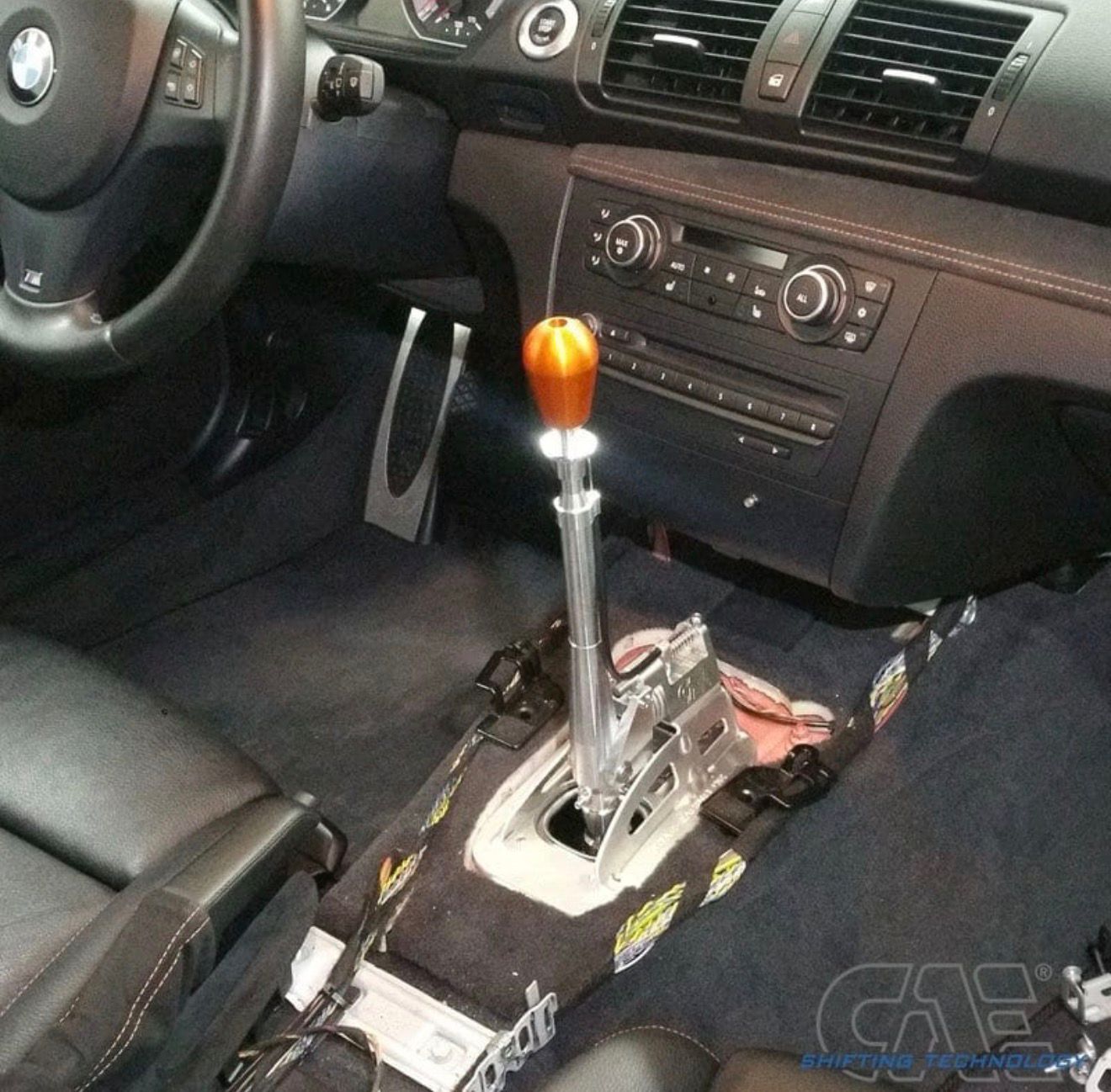

- Shifter is intended for vehicles with interior trim or center console; this must be modified for installation.

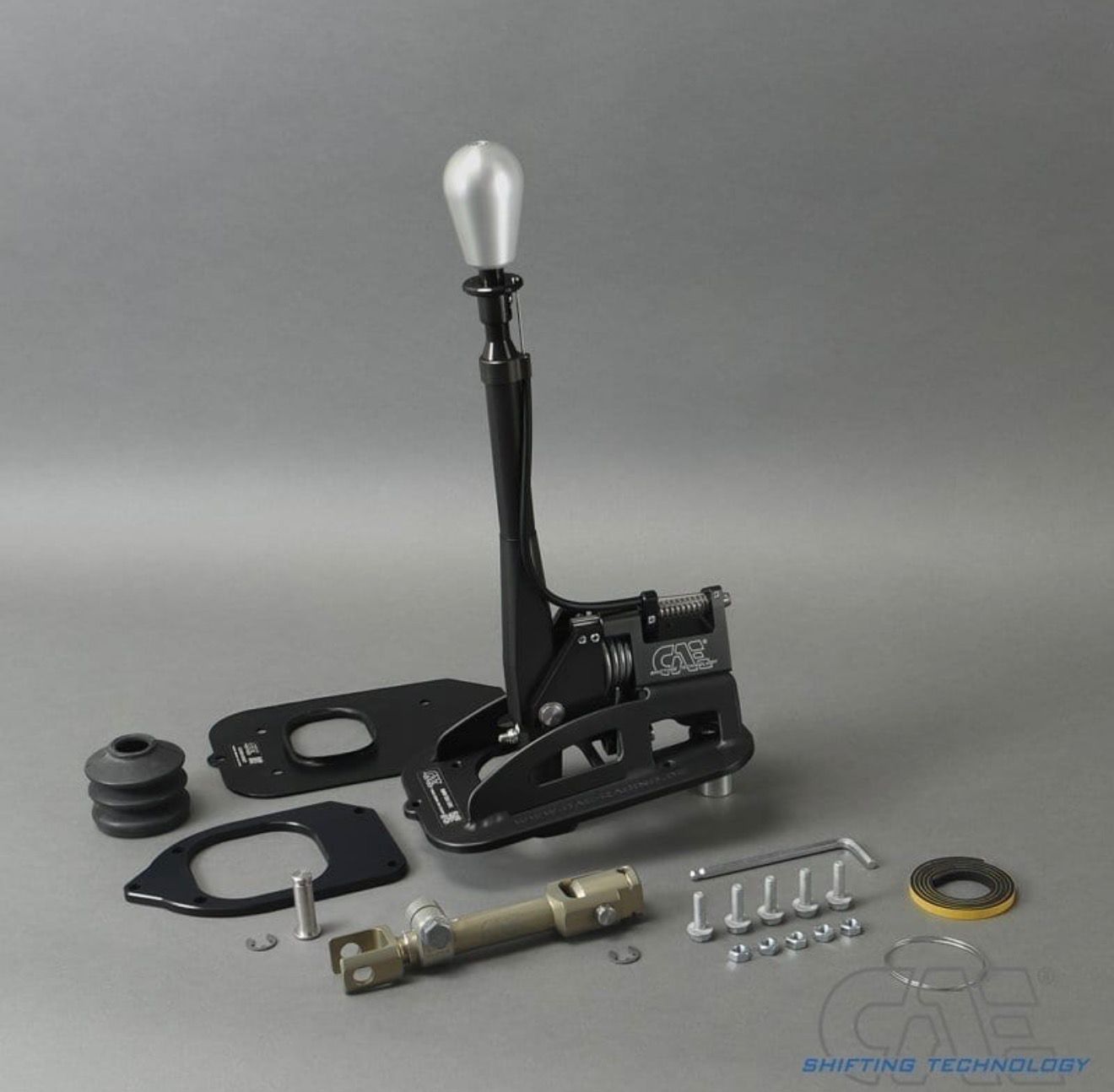

- Surface and gear knob available in various finishes; and as an accessory covered with grey Alcantara with red or blue X-stitching
"3XS" suitable for the following models with 6-speed manual transmission:
- BMW E8x 135i N54
- BMW E9x 335i N54
- BMW E9x 325d, 330d N57 LCI
"XXS" suitable for the following models with 6-speed manual transmission:
- BMW 1M N55
- BMW E8x 135i N55
- BMW E9x 335i 335xi N55
"XS" suitable for the following models with 6-speed manual transmission:
- BMW E9x M3
- BMW E8x 130i
- BMW e9x 330i
- BMW X1 28i
"S" suitable for the following models with 6-speed manual transmission:
- BMW E8x 125i
- BMW E9x 323i N52, N52N, 325i N53, 328i
"L" suitable for the following models with 6-speed manual transmission:
- BMW E8x 116i, 118i, 120i,
- BMW E9x 316i, 318i, 320i,
ATTENTION
A PART CERTIFICATE is also available for this CAE Ultra Shifter.
Entry into the vehicle documents for use in the area of
STVZO is therefore EASILY possible according to §19/3.
If you would like a certificate for your shifter, please contact us in parallel with your purchase
