FlashOnline — universal flash memory emulator 28Fxxx/29Fxxx, which allows you to program the standard ECU in real time mode!
Features:
- Live editing of the ECU firmware in real time, even while the engine is running!
- Official support in TunerPro RT
- Also can work with any software such as WinOLS, RomRaider, etc. through CobraRTP Utility.
- Live map tracing in TunerPro RT
- Remote connection via Bluetooth interface (if provided)
- Store and switch 2 different firmwares.

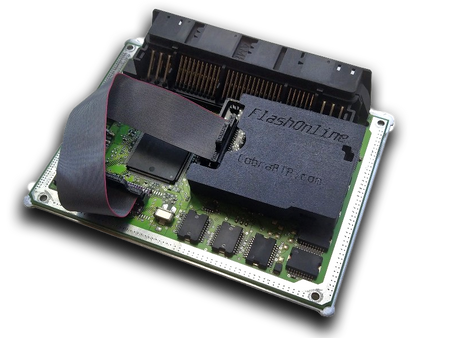

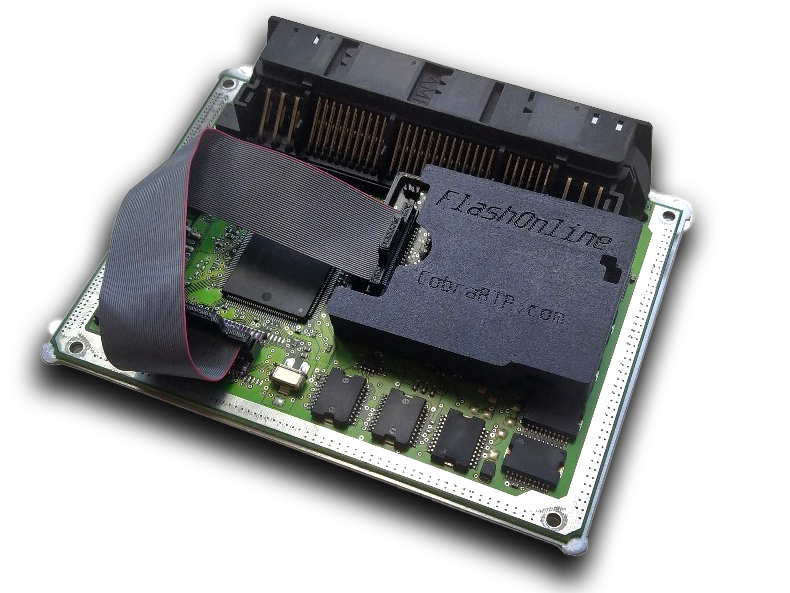

- Can be installed in an ECU case - the device is smaller than a credit card!

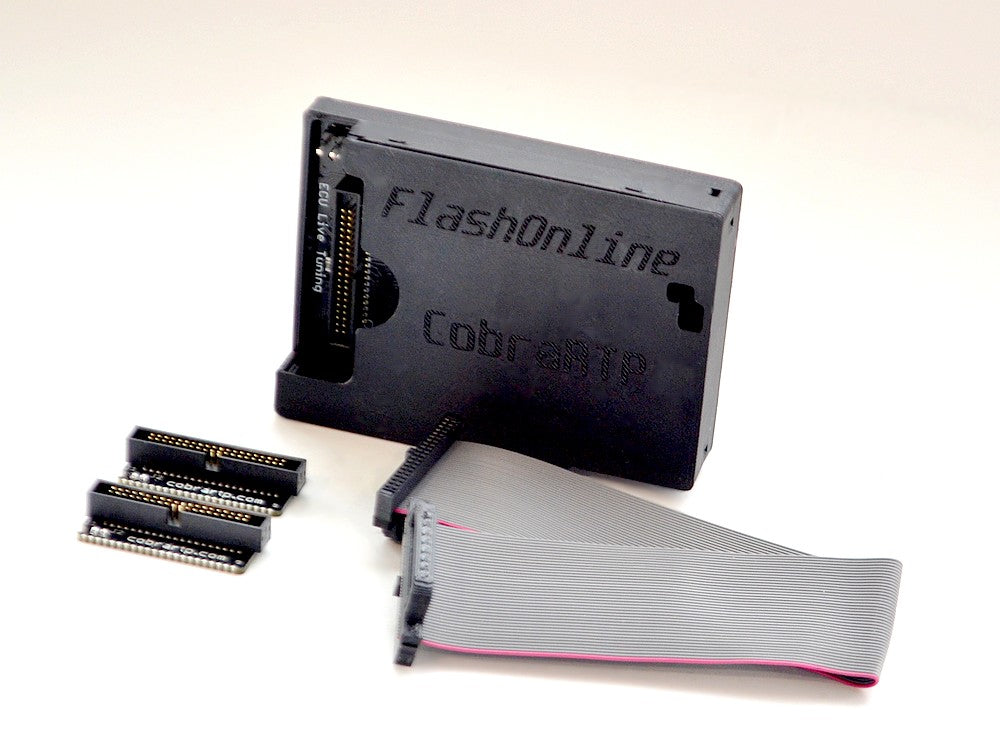

Standard kit:
- FlashOnline
- extension cable.

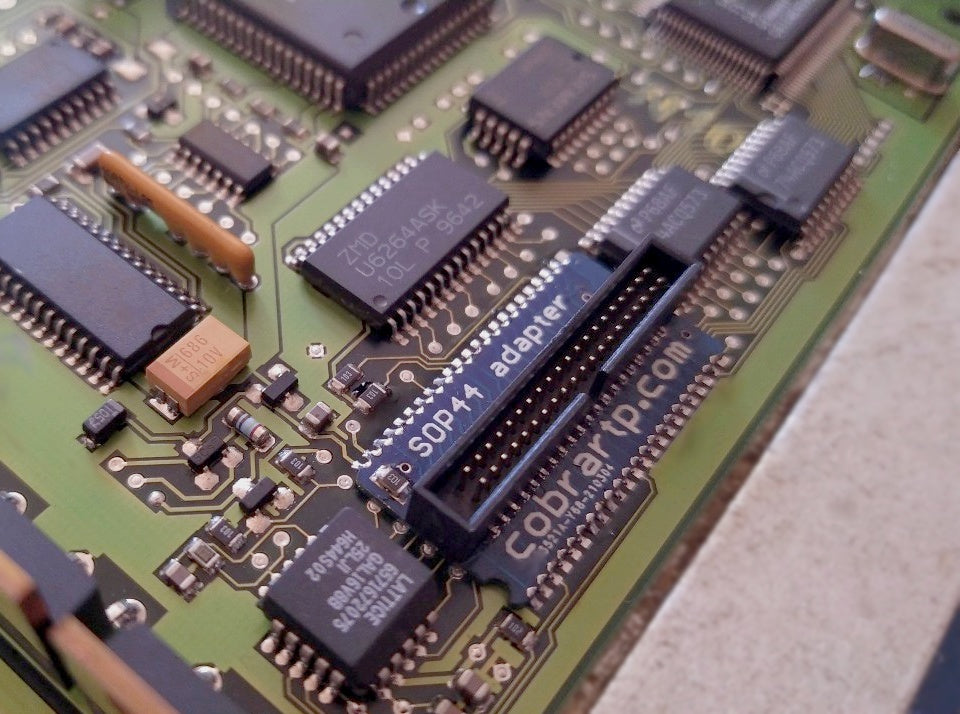

- SOP-44 adapter (2pcs.)
- CobraRTP sticker
Note: USB mini cable is not included, must be purchased separately.
Compatible ECUs
Flash memory 28F200, 28F400 / 29F200, 29F400, 29F800 ( SOP-44 only). CPUs: Infineon (Siemens) C167 (C166), ST ST10F273, ST10F275, Motorola ZC439512, ZC439615.
- Siemens MS41.0, MS41.1, MS41.2, MS42, MS43, MSS52, MSS54, SIMK31-43, MS5150, EMS2000, GS20, Simos 7.1/3PG/3.3, Simtec 75.1/75.5
- Bosch ME2.0, ME2.8, ME3.8.3, M5.2.1, ME7.1, ME7.1.1, ME7.2, ME7.4.4, ME7.4.6, ME7.5, ME7.9.6, ME7.9.7, MP7, EDC15 (P/P+/C4/C6/VM), MED7.6.2
- General Motors (GM) engines: LS1, LS2, LS3, LS6 LS7 ECUs: P01, E37, E38 (Corvette, Camaro, Firebird 1997 – 2011*)
This list presents some of the supported ECUs, the list is wider and limited only by the type of memory installed in the ECU.
FlashOnline has been tested with the following ECUs:
Siemens MS41, MS42, MS43, MSS54, MS5150, 5WK (GS20), 5WY1857
Bosch ME2.8, ME3.8.3, M5.2.1, ME7.1, ME7.1.1, ME7.2, ME7.5, EDC15C6, EDC15P+, EDC15VM
How do I know if my ECU is compatible?

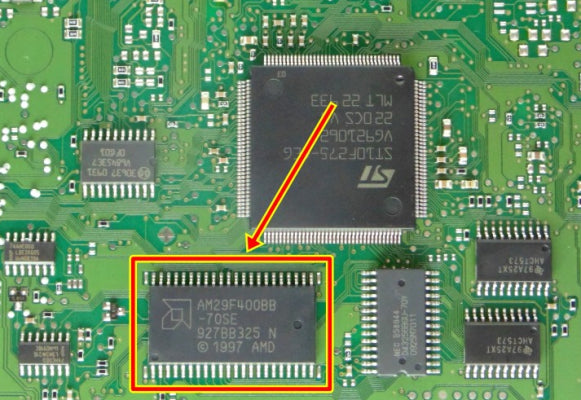

To do this, you need to open the ECU and make sure that one of the supported ROM types is installed:
