Rear Axle Suspension Bolt Kit suitable for BMW E46 incl. M3

Chassis bolt set REAR AXLE suitable for BMW E46. The set includes approx. 80 parts. Ideal for overhauling the rear axle.

Our Rear Axle Bolt Set for BMW E46 includes a total of approx. 80 parts. All standard parts are identical to the originals in terms of dimensions and strength. If no strengths are specified, 8.8 is assumed. Higher strengths are explicitly stated by us.

The set also includes some original BMW parts. The original parts are marked with * below.

The set fits E46 Coupé, Convertible, Sedan and Touring for all engine types and model years.

The item comes with detailed assembly instructions including tightening torques. The parts are delivered numbered according to the instructions.

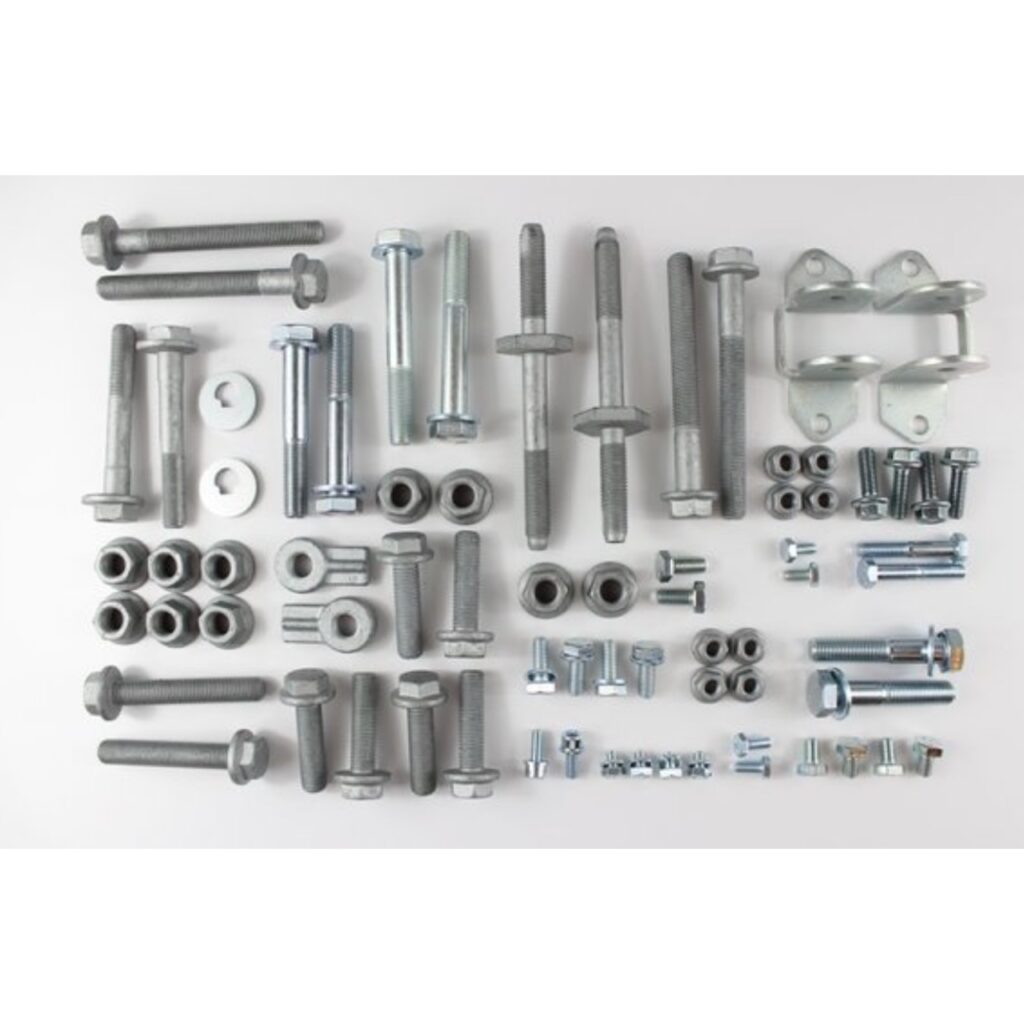

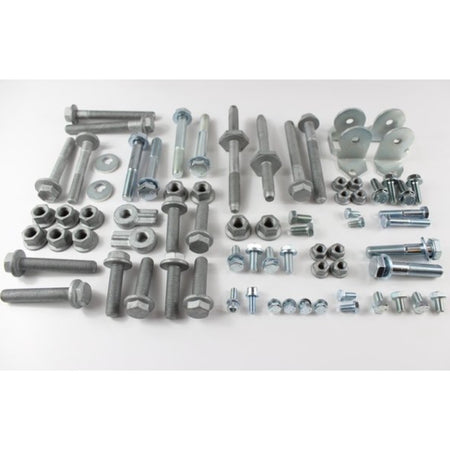

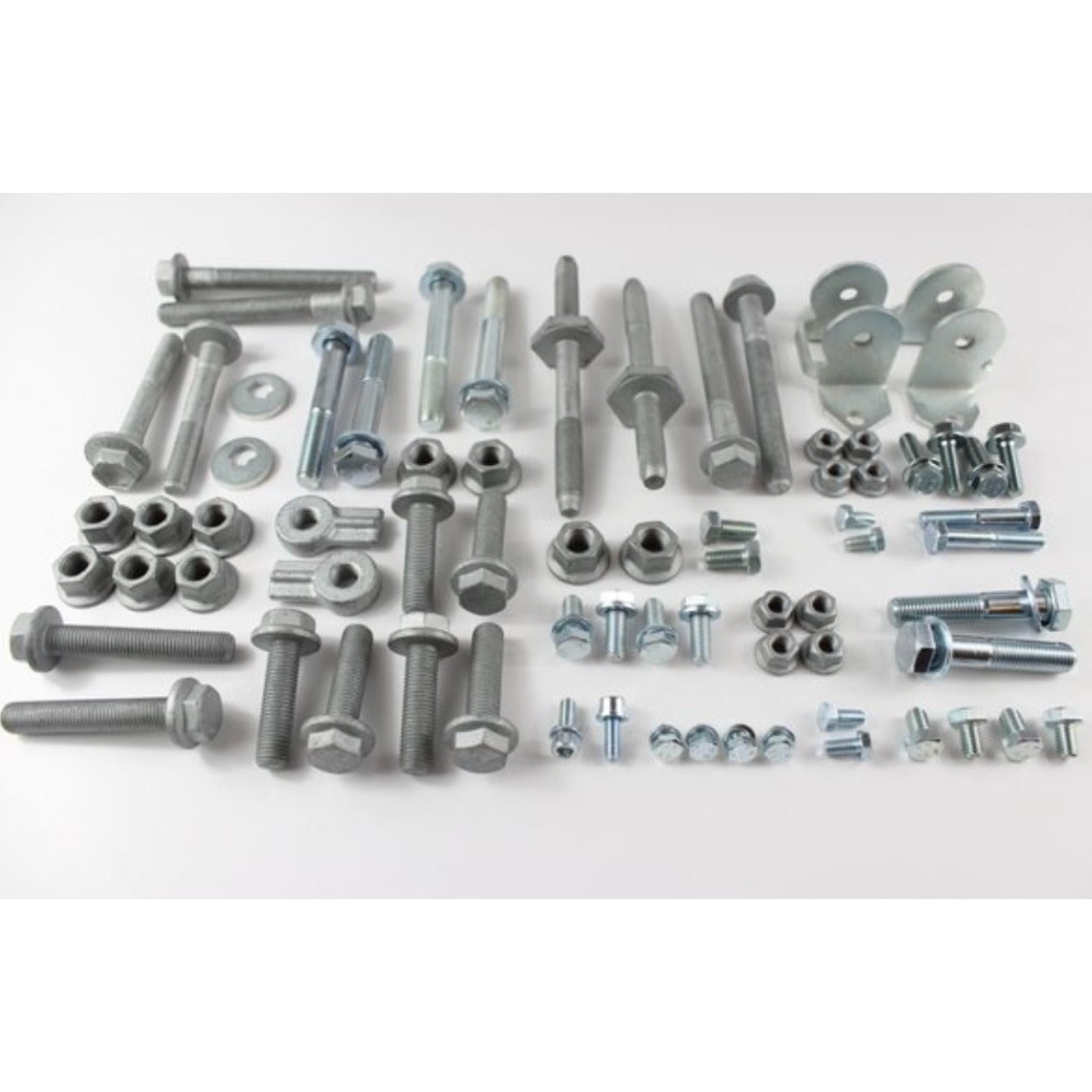

Scope of delivery (screws, nuts, washers):

Rear axle:

– Flanged bolts 10.9 – Upper control arm to trailing arm + flanged self-locking nut |10|

– Eccentric bolts 10.9 – Lower control arm to trailing arm + flanged self-locking nut |10| *

– Eccentric washers

– Hex head screws with washer 10.9 – Upper control arm to rear axle carrier

– Hex head screws with washer 10.9 – Lower control arm to rear axle carrier

– Threaded plate – Control arm to rear axle carrier *

– Flanged bolts 10.9 – Trailing arm to bearing block

– Flanged bolts 10.9 – Bearing block to body

– Cylinder screws – ABS sensor

– Threaded stud + flanged nut |10| – Bushing mount *

– Flanged bolts 10.9 – Bushing mount

– Hex head screws with washer – Thrust rod

– Self-tapping screws – Heat shield

– Flanged bolts + nuts – Holding tab and stabilizer link bracket to body

– Hex head screw + self-locking nut – Stabilizer links to stabilizer link bracket

– Rear stabilizer link bracket

– Hex head screws + washer 10.9 – Shock absorber to trailing arm

– Hex head screws + washer – Backing plate to trailing arm

– Hex head screws 10.9 – Handbrake cable block to trailing arm

– Hex head screws – Brake line bracket to trailing arm

NOTE:
If we do not explicitly state in the product text that a parts certificate (Teilegutachten) or a general operating permit (ABE) is included, this is a motorsport article that is not approved under the German Road Traffic Licensing Regulations (StVO) and therefore the operating license expires if no registration is made in accordance with § 21 StVO!

Please note that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.
