Chassis bolt set, yellow zinc-plated, suitable for BMW E36 incl. M3
BMW E36 Chassis Bolt Set Front or Rear Axle.
Our bolt set for the front or rear axle suitable for BMW E36 includes over 50 parts in total. All standard parts are identical to the originals in terms of dimensions and strength, and all are yellow zinc-plated. If no strength is specified, it is 8.8. Higher strengths are explicitly stated.
Currently, we offer the set only for model years from 09/1992.
Background: Before 09/1992, different bolts were used to attach the front axle support, which we do not yet have in our program. If you do not need these bolts anyway, the set can also be used for model years before 09/1992.
Please note:
The "M3 – yes/no" option affects the scope of delivery for the drop link mounting. If you select "M3 – yes," you will not receive drop link brackets, as on the M3, the drop links are bolted directly to the strut. (see image 8)
The item includes detailed assembly instructions, including torque specifications. The parts are delivered numbered according to the instructions.
Scope of delivery (bolts, nuts, washers):

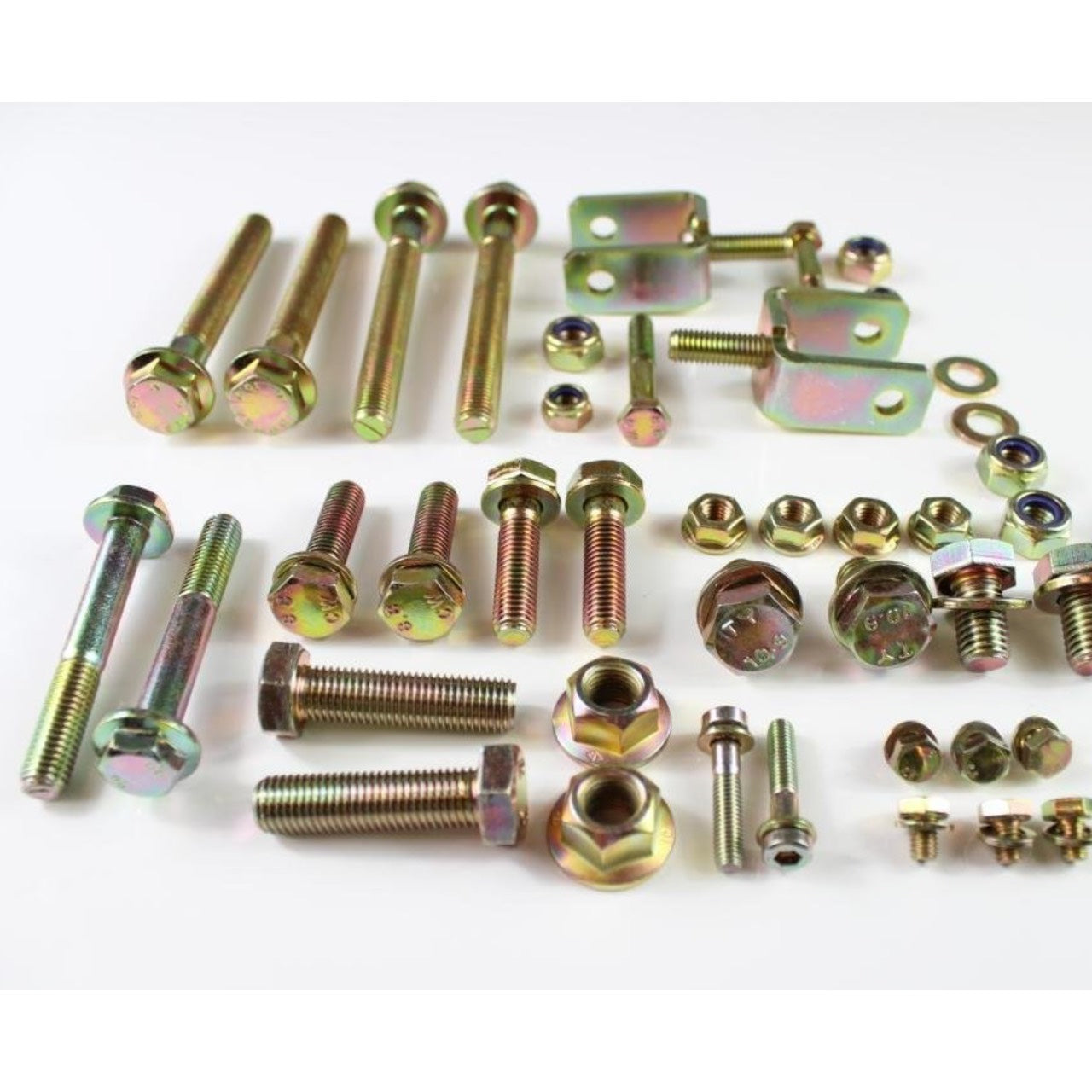

Front Axle:
– Front axle to body – 10.9
– Control arm bearing to body
– Steering gear to front axle
– Drop link bracket to control arm
– Drop link to stabilizer
– Drop link bracket (not for M3)
– Drop link to drop link bracket
– Stabilizer retaining tab to front axle
– ABS sensors to strut
– Backing plates to strut
– Steering knuckle to strut

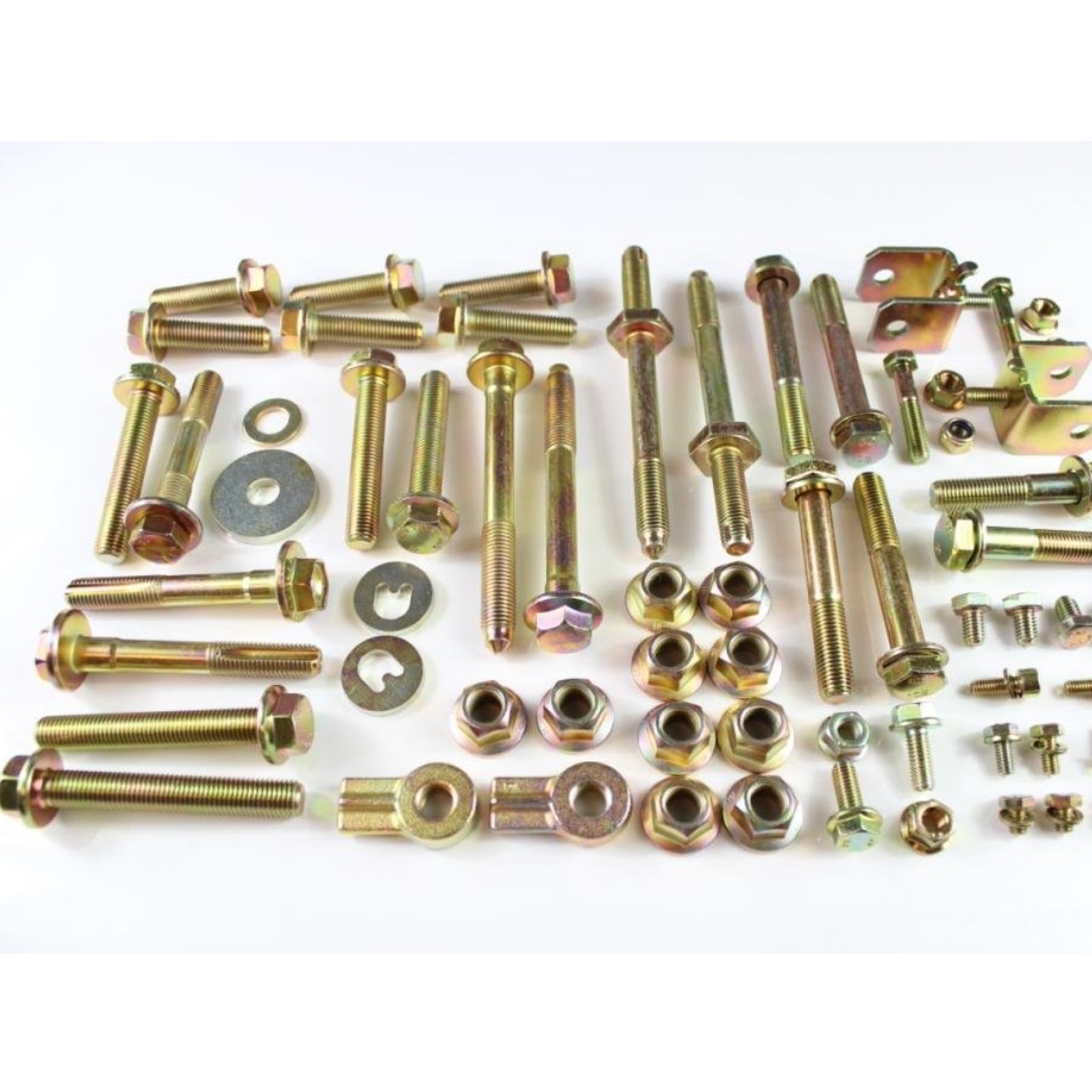

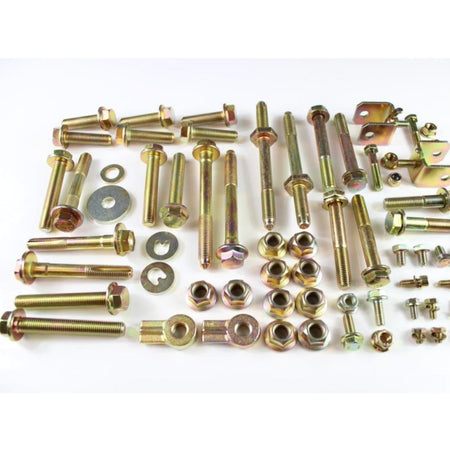

Rear Axle:
– Flange bolts 10.9 – Upper control arm to trailing arm + self-locking flange nut |10|
– Eccentric bolts 10.9 – Lower control arm to trailing arm + self-locking flange nut |10| *
– Eccentric washers
– Hex head bolts with washer 10.9 – Upper control arm to rear axle carrier
– Hex head bolts with washer 10.9 – Lower control arm to rear axle carrier
– Threaded plate – Control arm to rear axle carrier *
– Flange bolts 10.9 – Trailing arm to bearing bracket
– Flange bolts 10.9 – Bearing bracket to body
– Cylinder head screws – ABS sensor
– Threaded studs + flange nut |10| – Subframe bushings *
– Flange bolts – Subframe bushings *
– Flange bolts with washer 10.9 + shims – Vibration damper
– Hex head bolt with washer 10.9 – Differential bearing *
– Flange bolts + nuts – Retaining tab and drop link bracket to body
– Hex head bolt + self-locking nut – Drop links to drop link bracket
– Rear drop link bracket
– Hex head bolts + washer 10.9 – Shock absorber to trailing arm
– Hex head bolts + washer – Backing plate to trailing arm
– Hex head bolts – Brake line bracket to trailing arm
NOTE:
If we do not explicitly mention a parts certificate (Teilegutachten) or a general operating permit (ABE) in the product text, this is a motorsport item that is not approved under the German Road Traffic Licensing Regulations (StVO) and therefore the operating license expires if no registration according to § 21 StVO is carried out!
Please note that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.
