do88 Charge Pipe suitable for S55 F-Series | F87 M2C | F80 M3 | F82 F83 M4 BMW incl. CERTIFICATE

No reviews
CHF 324.00
Product details
  • Vendor DO88

Do you have questions about this product?

Ask an expert!

Description

New from 2025 including expert opinion! The expert opinion only needs to be carried along, no entry in the vehicle documents is necessary.

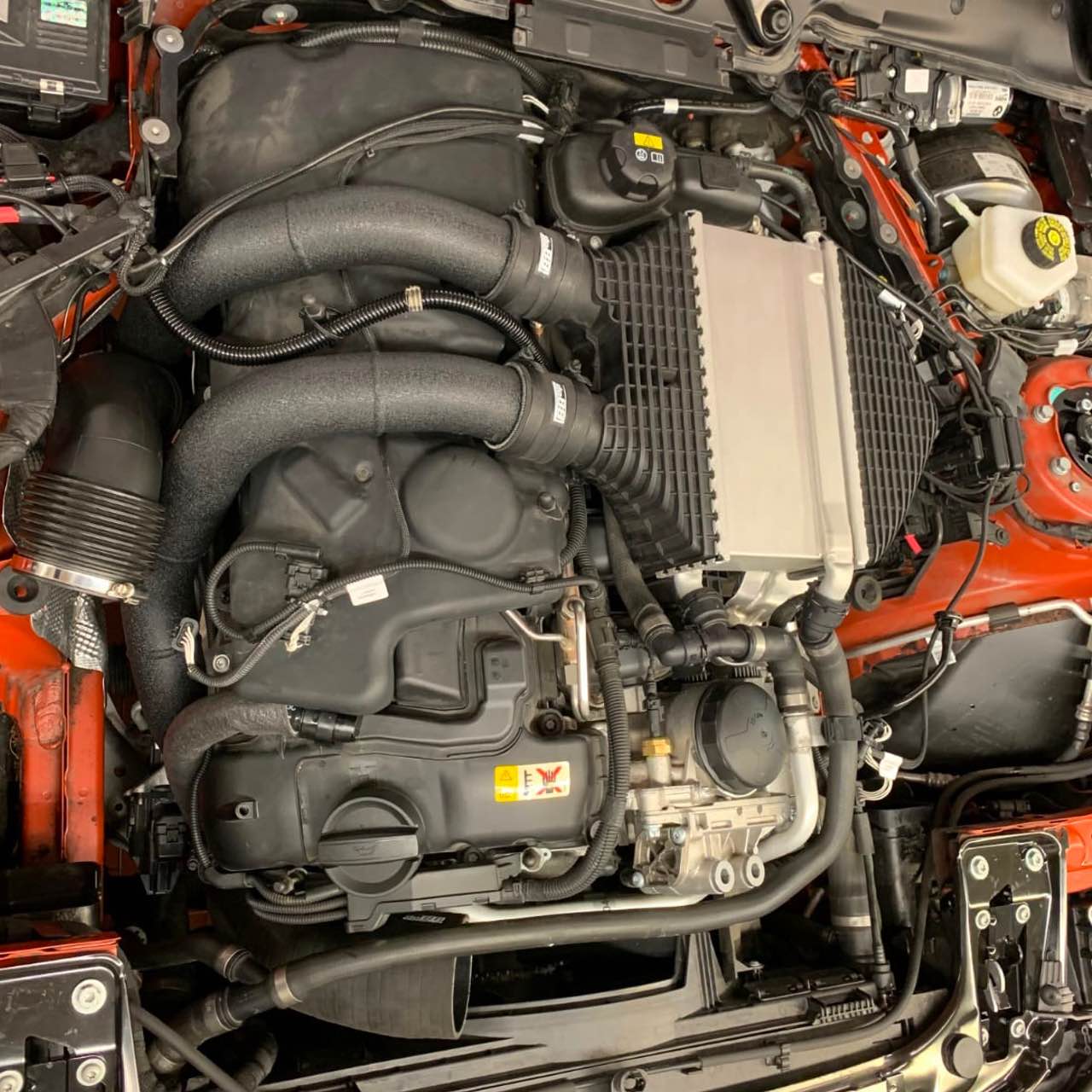

The S55 turbo engine from the  BMW M2C, M3 and M4 F8x uses plastic charge pipes on both the hot and cold sides. These pipes are a huge weak point on any tuned car, and in some cases even on stock ones. The OE plastic pipes burst, causing boost leaks.

With our performance charge pipes, we offer a solution to the problem while optimizing airflow!

To obtain an accurate 3D model of the available space for the design of our charge pipes, we performed a detailed 3D scan of our M3 Competition engine bay. Using this 3D scan model, we were able to design new 2.25″ (57 mm) charge pipes with smooth routing.

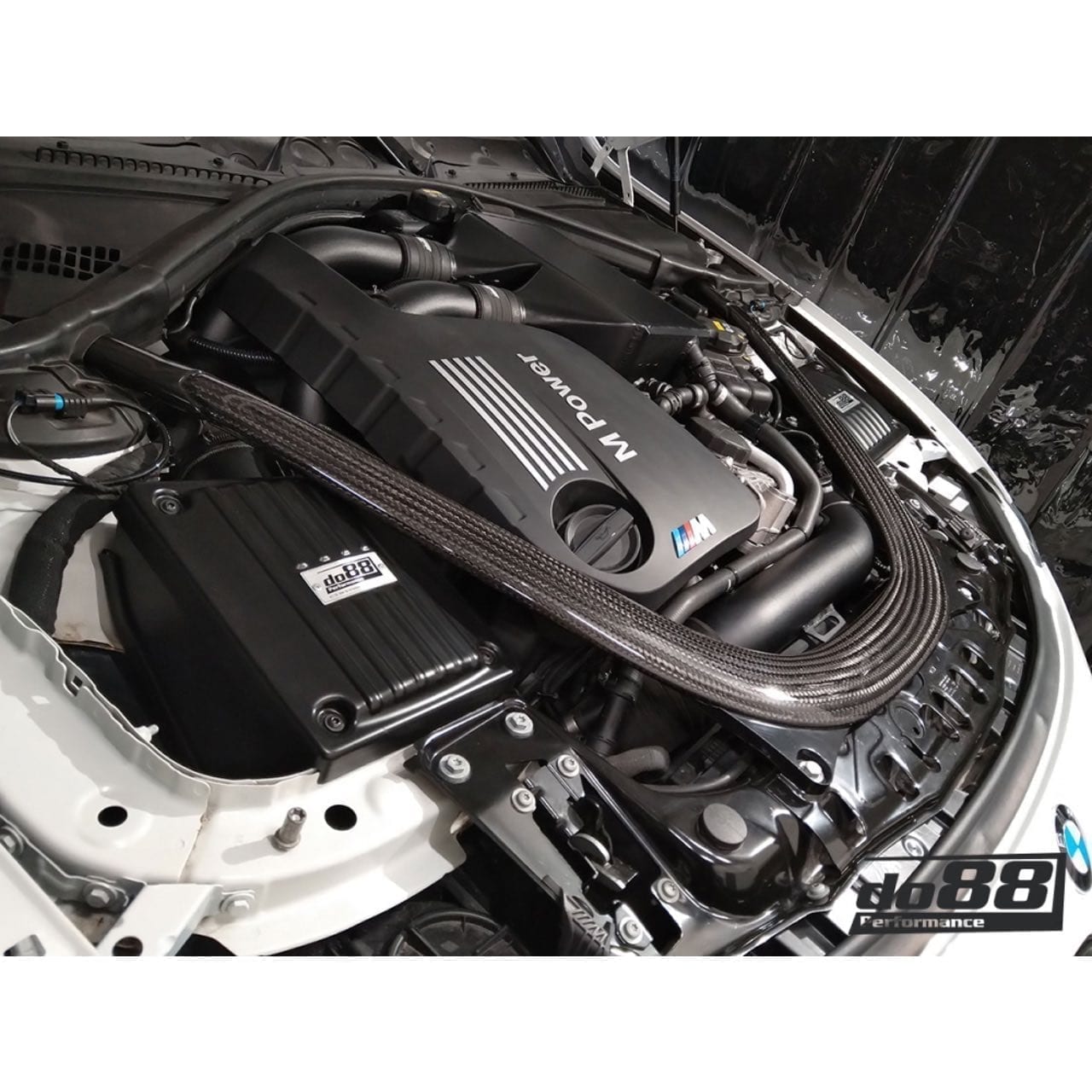

It is challenging to fit pipes as large as 2.25″ (57 mm) as there is not much space between the engine cover and the valve cover. Many aftermarket charge pipes make it impossible to properly snap the rubber grommets of the engine cover onto their locking pins. We solved this problem with our design of this pipe and by including longer OE-style locking pipes for the engine cover.
We chose not to include methanol injector ports on our charge pipes, as we believe it is better to have them after the intercooler. Our intercooler throttle body (J-pipe) has 2 methanol injector ports.

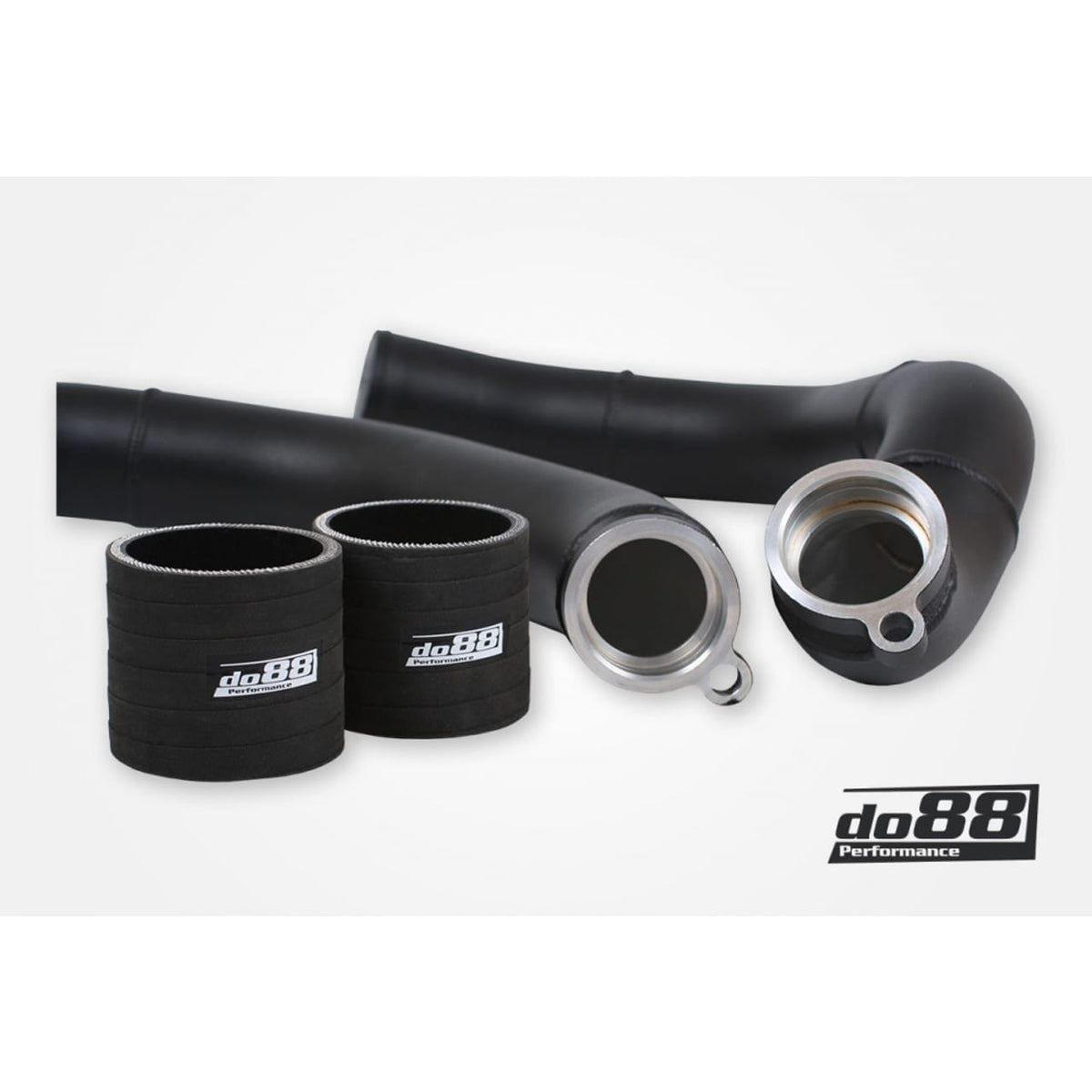

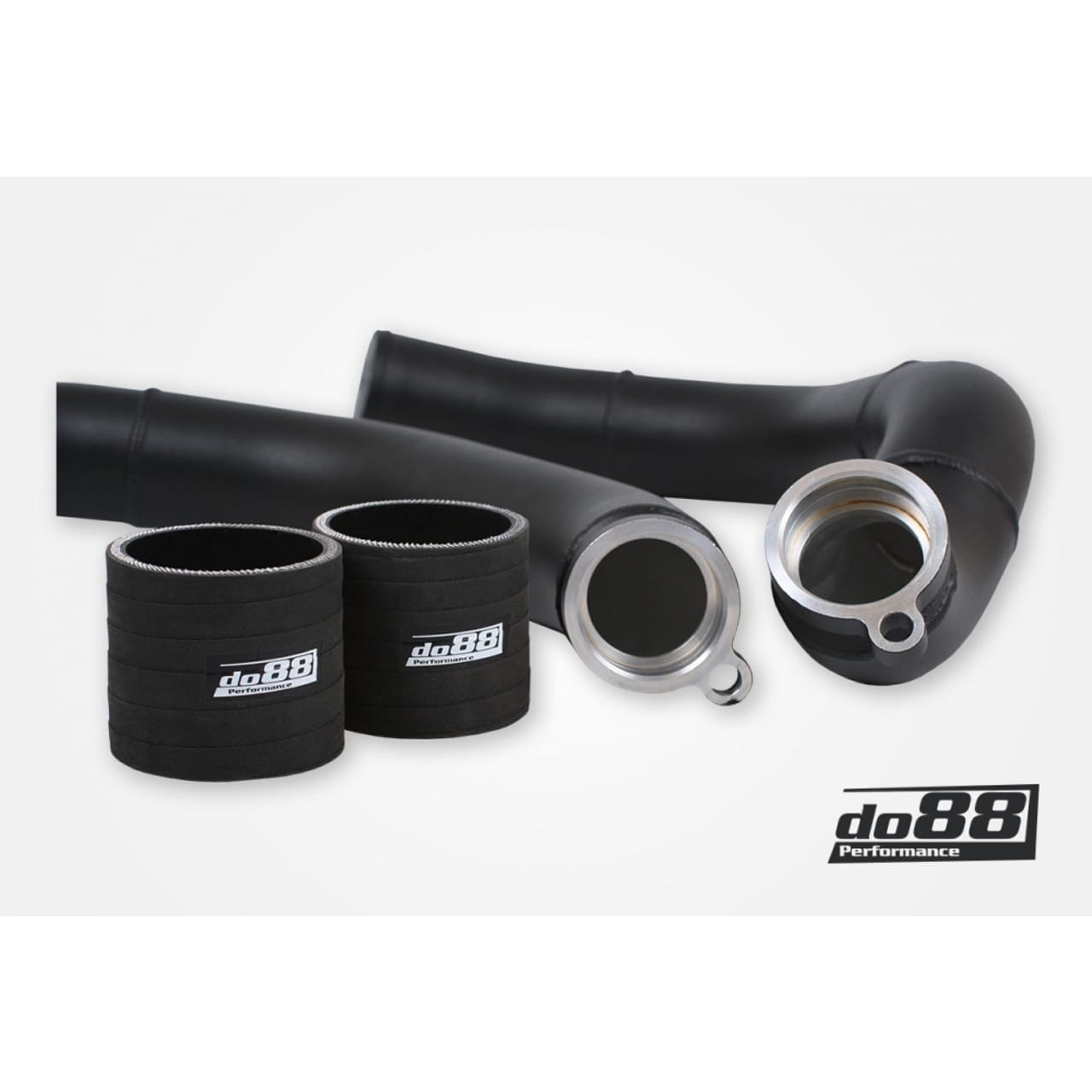

Our final design is an all-aluminum construction with mandrel-bent pipes and CNC-machined turbo flanges. We also include more durable silicone hoses that connect our pipes to the intercooler inlet flanges. For a cool, subtle look, matte black hose clamps are included.


Features:
– Improved reliability!
– 6061 aluminum instead of plastic
– Stainless steel throttle body C-clip
– Includes matte black silicone hose coupling
– Up to 4% better airflow!
– 2x 1/8-27 NPT ports that can be used for methanol/nitrous injection or as a vacuum port for gauges. Blind plugs are included!


Suitable for the following models:
  • BMW F87 M2 Competition
  • BMW F8x M3 M4

OEM reference number:
11617846245, 11617846246, 11617848447


This diagram shows the charge air flow at different pressure losses of the do88 Boostpipe compared to OEM pipes:



NOTE:
If we do not explicitly state in the product text that an expert opinion or a general operating permit (ABE) is included, it is a motorsport item that is not approved under the German Road Traffic Licensing Regulations (StVO) and thus invalidates the operating license if no registration is made in accordance with § 21 StVO!

Please note that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.
