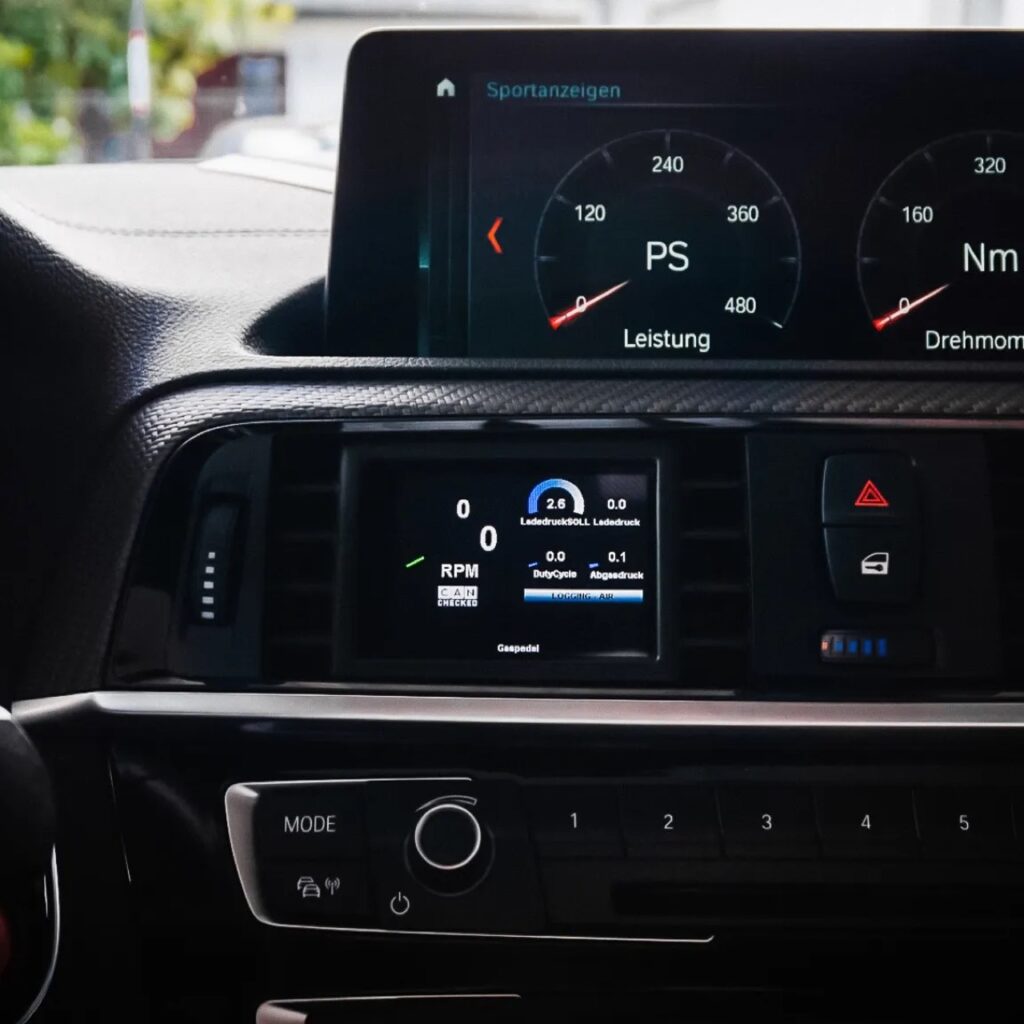

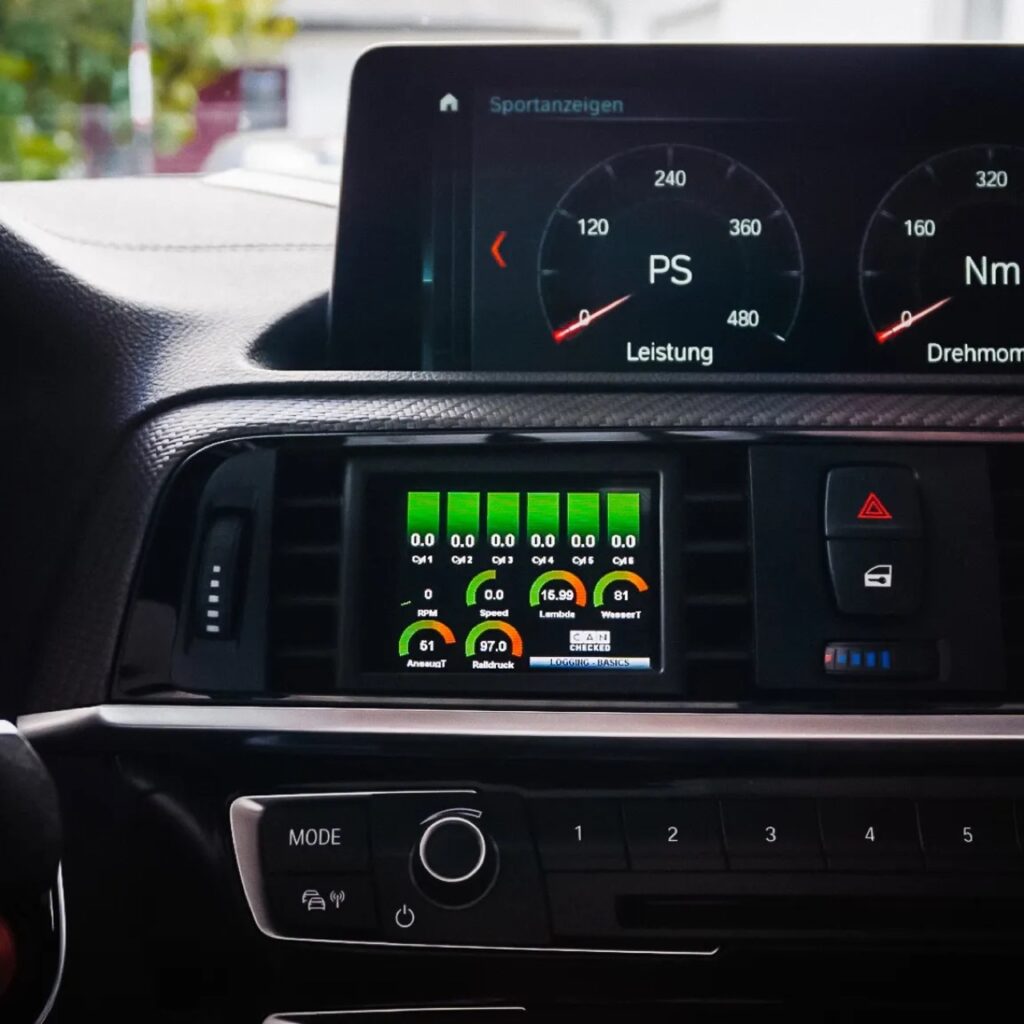

The new CANchecked GEN2 multifunction display for in-depth vehicle information and optional analog sensors
With vehicle-specific connection cable and mount for BMW F2x F3x F8x – LHD vent(s)
Note: This display comes with a manufacturer-specific connection cable. This means the OBD port remains free, and even faster query speeds and more values can be provided compared to OBD solutions. CANchecked displays work for a variety of vehicles and engines with OBD 2. If your engine type does not work or does not show correct values, then your vehicle protocol has not yet been implemented in the display. However, CANchecked can add the correct .tri file for your engine/car model within two working days. Contact us for more information.
The brand new second generation (GEN 2) of CANchecked displays offers
- Improved graphics with better anti-aliasing
- Swiping instead of tapping
- More precise widget adjustment
- New warning pop-up functions
What is CANchecked? CANchecked displays, gauges, software, and sensors allow for the visual representation of important engine data, such as oil temperature, boost pressure, lambda, exhaust gas temperature, etc. This can be done either via CAN bus (depending on the ECU values) or via additional analog sensors.
Features:
– 2.8 inch capacitive touch display with mounting frame
– Control unit values can be displayed (adapter cable included)
– 8GB SD memory card
– Up to 10 freely configurable display pages
– Connection via the junction box in the footwell (see installation instructions)
– Two digital and four analog inputs for 0 – 5V sensors (e.g., oil pressure, fuel pressure, exhaust gas temperature (with adapter), and boost pressure)
– Integrated shift light
– Performance Meter (measures, e.g., 100-200 km/h time)
– Individual minimum and maximum warning values
– Pop-up function when warning values are exceeded or fallen short of
– Adjustable screen brightness (dims automatically with vehicle displays)
Views:
– 10 pages of free configuration
– Up to 17 widgets per page
– 10 different widgets (digital number, bar, speed, single pointer, log, table switch, image (from SD card), number, circular display, Haldex)
– Widgets can be moved and resized via drag & drop
– Color adjustment possible depending on the widgets
Alternatively, the online configurator DSS is available. Here, views can be configured in real-time via USB.
Performance Monitor
- High-speed CAN integration allows you to access up to 64 vehicle sensors, which you can view in real-time. The 2.8″ touchscreen allows you to swap sensors in an instant and set up custom ranges and alerts with the DSS software.
Switch page with the cruise control button

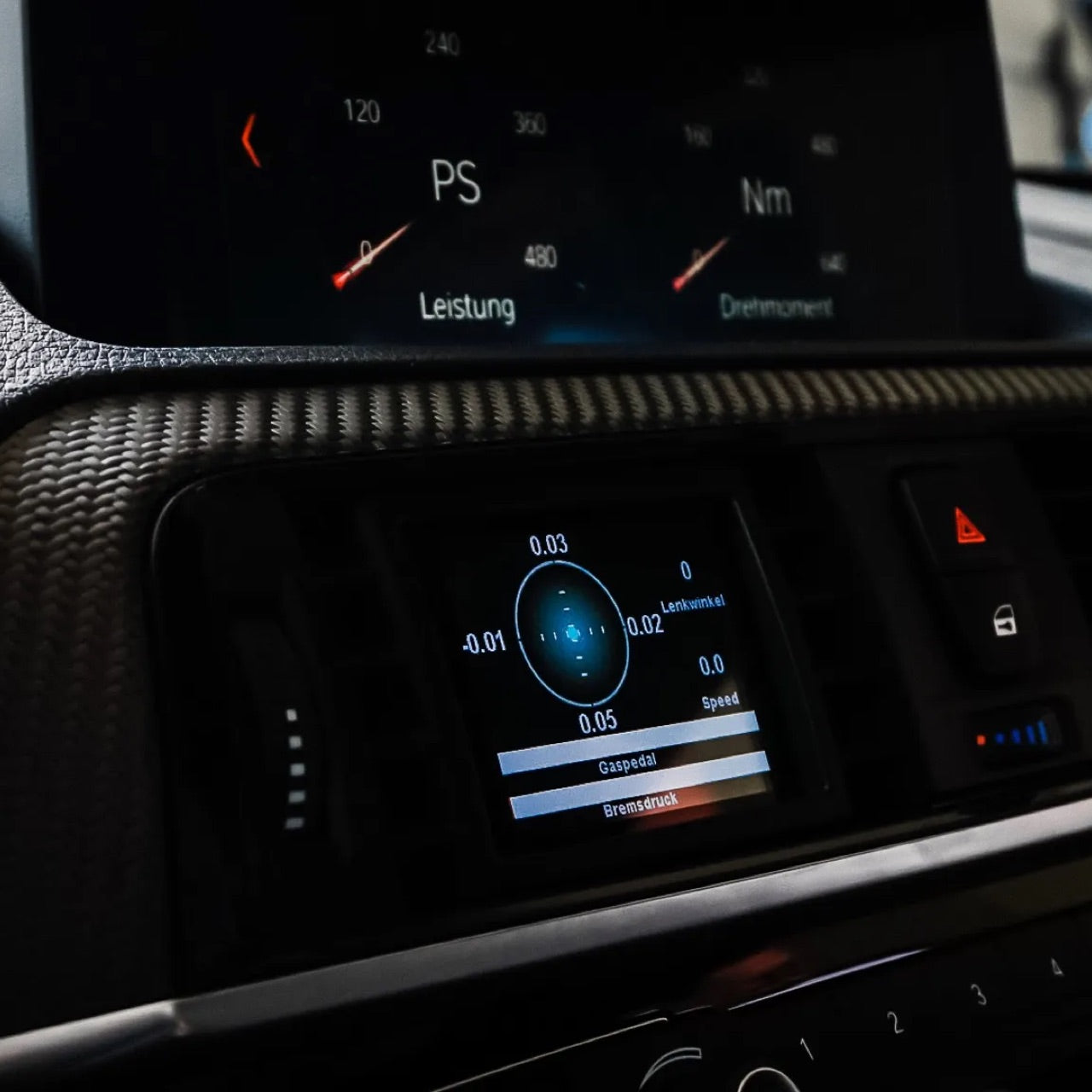

Driver Dynamics
Access to all data from the engine control unit
Diagnostic Function
- Swipe down from any page to instantly diagnose the fault memory. CANchecked can read, diagnose, and clear engine faults in plain text.
Data Logging
- Easy access to the log when needed and storage on the internal SD card.
Plug & Play Installation
- CANchecked displays with vehicle-specific mounting frames are precision-engineered and integrate perfectly into your vehicle's interior without obstructing the functionality of your vehicle's ventilation system.
Expandable Functionality
- 4 analog and 2 digital inputs allow monitoring of sensors and devices from other manufacturers. Future licenses under development will enable the integration of Haldex all-wheel drive controls, water-methanol injection systems, and ethanol fuel systems.
Customizable Screen Displays
- CANchecked comes with six pre-installed dashboards. A total of ten display pages can be customized using the included software and the widget library.
Your data, the way you want it!
- CANchecked can display up to ten pages and has access to up to 64 of your vehicle's sensors. Use the touchscreen to navigate between pages and select which sensor you want to display. Need more customization? You can personalize your views by individually customizing the graphics, sensors, and widgets using the included DSS software. We have already loaded some examples onto your CANchecked display to help you get started.
CANchecked optional accessories:
- A wide range of sensors, such as oil and water temperature, boost pressure, oil and fuel pressure, etc.
- Further vehicle-specific integrations
Scope of delivery:
- Vehicle-specific mount / installation frame for ventilation grille
- CANchecked 2.8 inch display
- Vehicle-specific connection cable
- 8 GB Micro-SD card
- Micro-SD card adapter
- Quickstart Guide
If available, installation instructions are stored on the CANchecked website
The display can be individually configured via the website. The dbc converter for the CAN bus protocol and the online configurator for the widgets, which can also be adjusted via the touch display.
The temperature range of the display is -10°C to 70°C.
12V is required for power supply, 5V or 24V are optionally possible.
FAQ
Will the display get hot in the ventilation duct?
No. The screens are always protected from heat flowing through the vents.
Does the ventilation nozzle also work with the display installed?
Yes, it does. We are constantly developing ventilation solutions where the airflow continues to bypass the display through special tunnels.
Can I change the appearance of the display, units, and scales?
Yes! With the different widget packs and the option to upload your own graphics, you can completely customize your display.
Can I use analog inputs?
Yes, there are 4 analog inputs. This allows you to read pressures, temperatures, etc. We can also put together complete packages for what you need!
Which ECU data can CANchecked access?
By default, we supply a pre-made TRI file with your display. All sensors that are queried are defined here, e.g.:
- Temperatures: Exhaust gas temperature, engine water temperature, oil temperature, intake air temperature, outside temperature, fuel temperature, DSG oil temperature
- Pressures: Boost pressure, ambient pressure, fuel pressure, pre-delivery pump pressure
- Lambda / Mixture: Lambda value, injection timing, short-term lambda control, long-term lambda control
- Miscellaneous: RPM, air mass (g/s), vehicle speed, throttle angle, total ignition timing, ignition timing reduction per cylinder, N75 pulse rate in %, voltage at terminal 30, oil level, torque, transmission…
- If values are missing, they can be easily added.
Can I adapt the graphic appearance of the boost pressure display to my vehicle?
You can use the CANchecked Display Setup Software to upload your own graphics. They must have the following format:
- Image type: 24bit BMP file (R8 G8 B8)
- Sizes: Background: 320 pixels X 240 pixels, Boost pressure display: 240 pixels X 240 pixels, Speedometer: 160 pixels X 160 pixels
