Brake Cooling Complete Kit suitable for F87 M2 Competition / CS BMW SPEED Engineering Front Axle

To transport air to the brake ventilation outlet, a suitable inlet is essential. The M2 Competition already has inlet ducts in the front bumper ex works, but these end in the middle of the wheel arch.

To prevent the air from swirling randomly in the wheel arch, we have developed an extension of the air duct that can be installed with minimal effort. It guides the air around the wheel and connects to the outlet via a 40 cm long hose (per side).

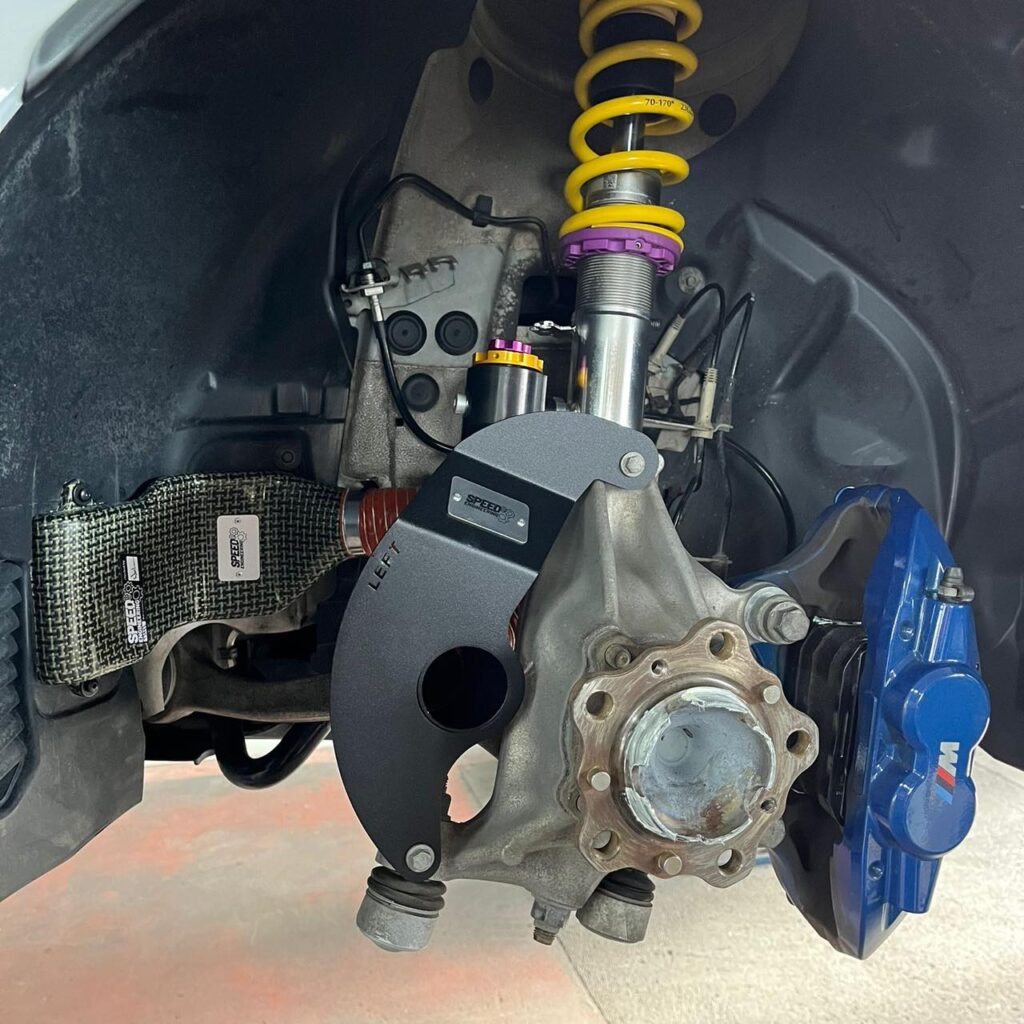

Backing plates

The matching backing plates with a connection for central air flow.

We utilize the channeling of the airflow to the center of the brake disc to exploit the turbine effect for cooling the disc from the inside. We specifically direct the air at an angle to avoid scattering losses and to use the available air volume as efficiently as possible.

Due to the lightweight construction combined with powder-coated aluminum, the component is sufficiently strong, lightweight, and robust.

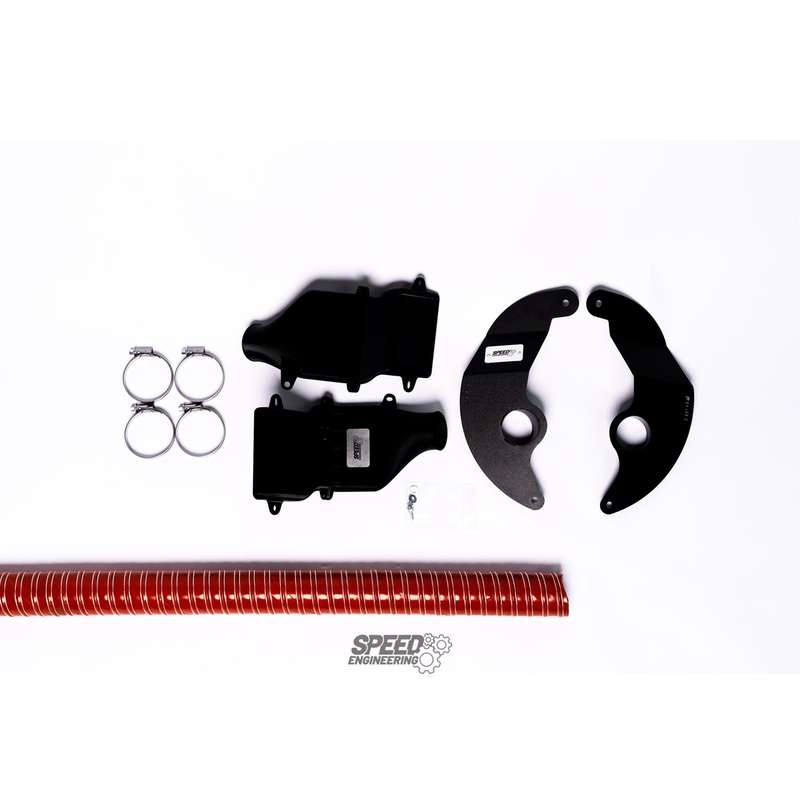

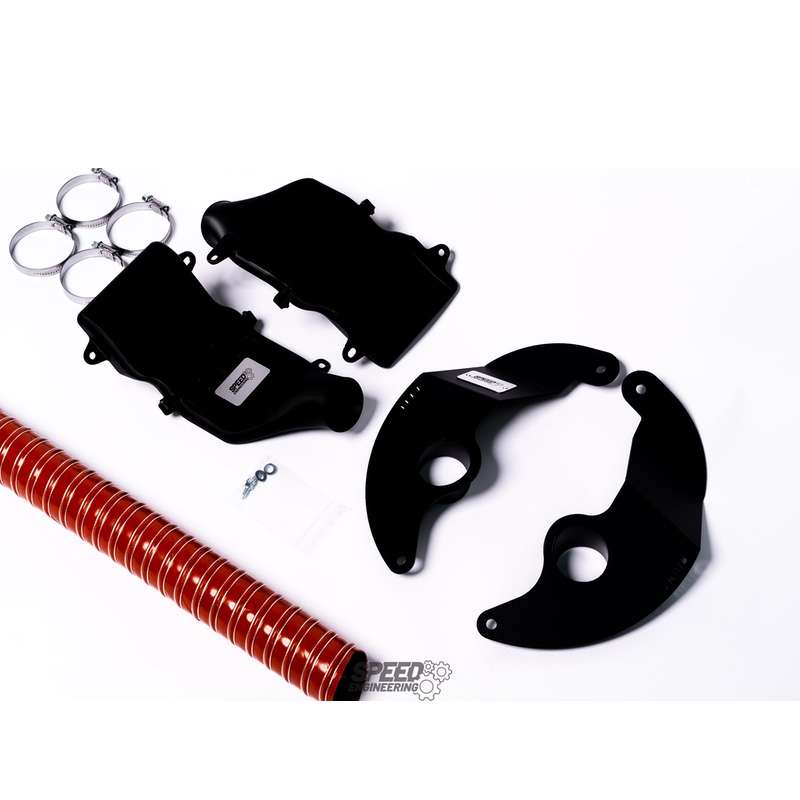

Scope of delivery:

• Air duct inlets for the front axle 1x left 1x right with connection for 51 mm air hose
• 2x mounting screws
• Backing plates for the front axle 1x left 1x right with connection for 51 mm air hose
• 1x air hose (1 meter)
• 4x hose clamps

Suitable for the following vehicles:

• BMW F87 M2 Competition,
• BMW M2 CS
• The kit for the "normal" M2 can be found here

NOTE:
If we do not explicitly state in the product text that a parts certificate or a general operating permit (ABE) is included, this is a motorsport item that is not approved under the German Road Traffic Licensing Regulations (StVO) and therefore the operating permit expires if no registration is made in accordance with § 21 StVO!

Please note that vehicle spare parts should only be installed by a qualified specialist workshop to ensure their proper function and the road safety of the vehicle.
