do88 Performance Intercooler – ICM-350-S – Product Description

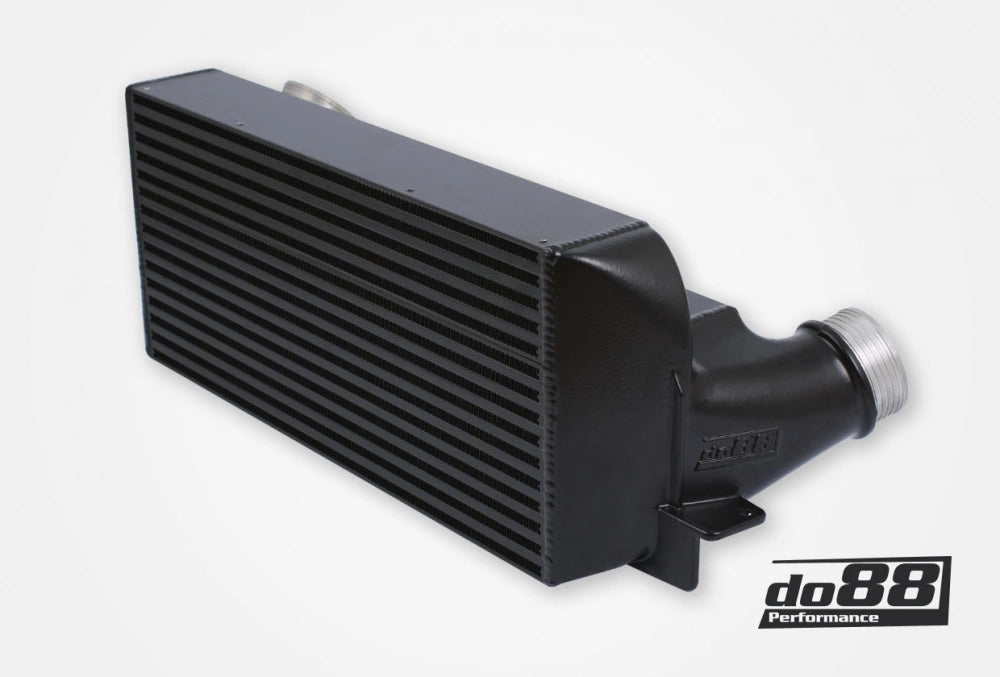

do88 Performance Intercooler – a high-performance intercooler for BMW models with N54/N55 engines (e.g., 135i, 335i). This intercooler was specifically designed for easy installation in your BMW and serves as an upgrade to the standard intercooler.
Key features & benefits:
-
Larger core volume: approx. 15,517 cm³ vs. 6,933 cm³ of the OEM part – about 124% more air volume .
-
Larger frontal cooling surface: 1,151 cm² vs. 658 cm² – approx. 75% larger surface area for better heat dissipation.
-

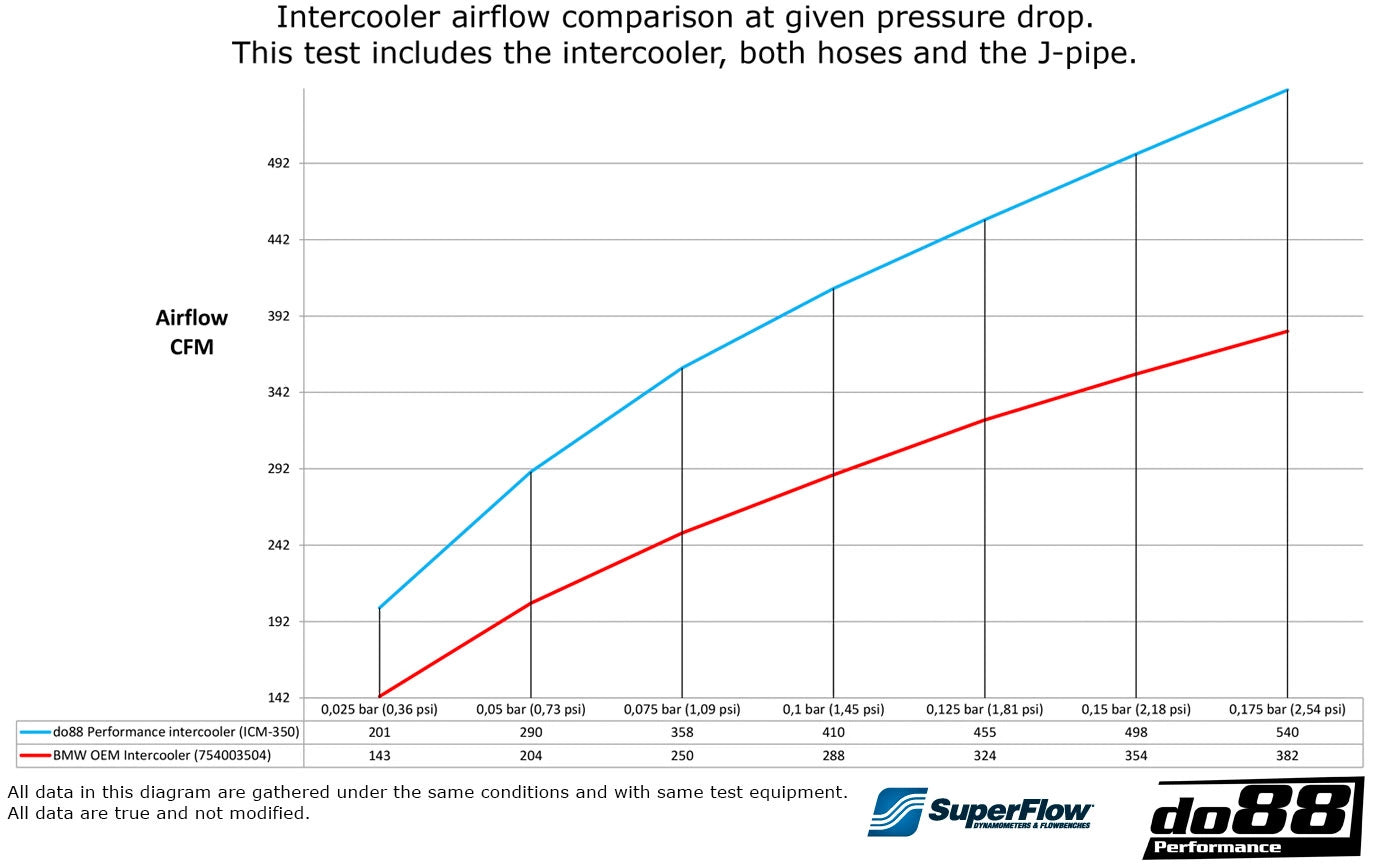

Increased airflow: approx. 498 CFM compared to 354 CFM at the same pressure difference – around 41% higher airflow .
- Performance increase: Up to approximately 13 hp more power under optimized conditions (e.g. Stage 1 tuning).
-

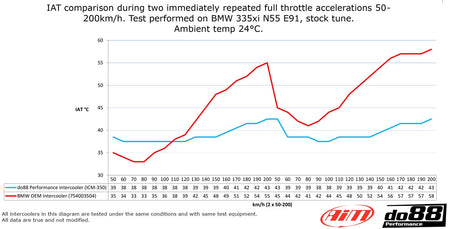

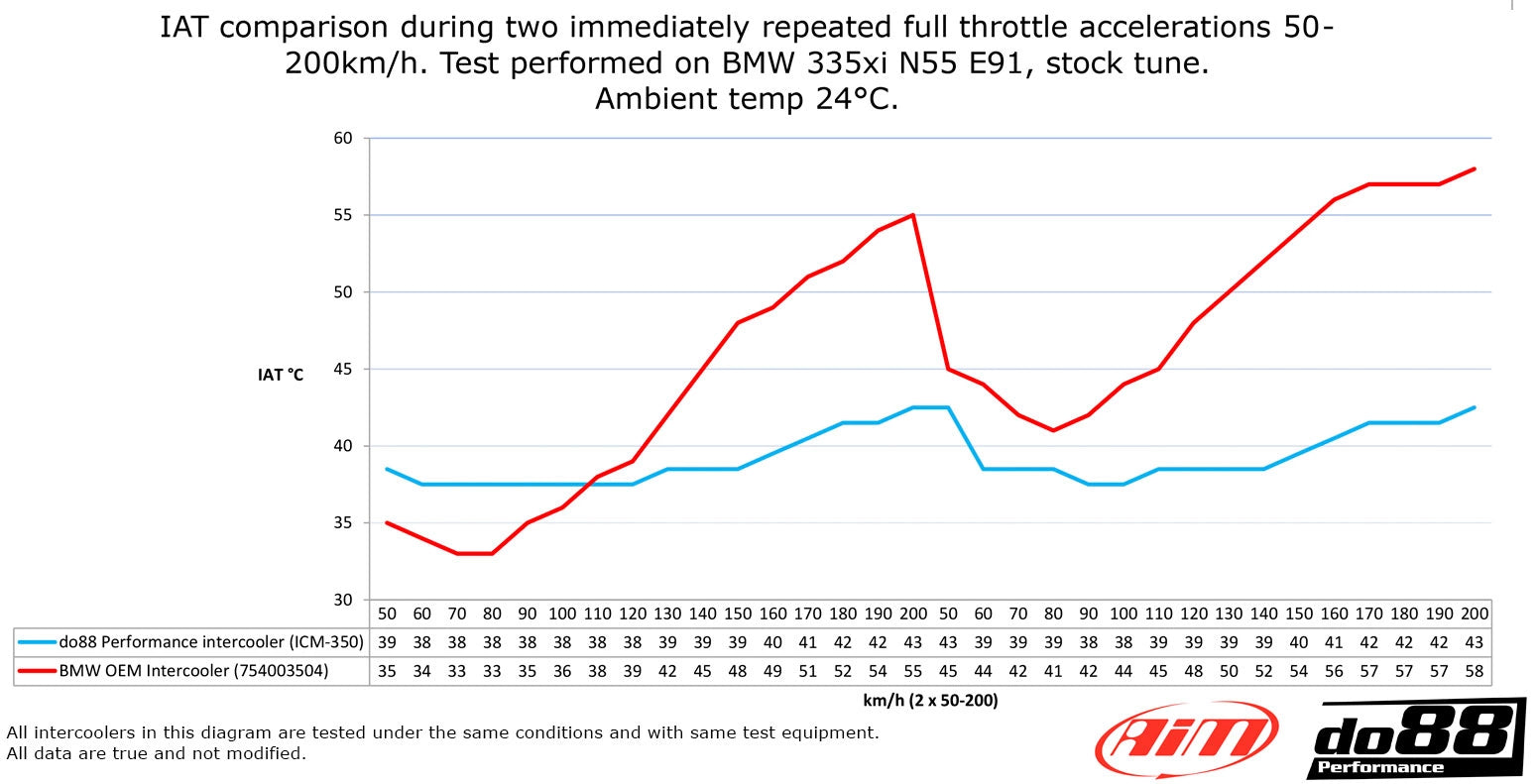

Lower intake air temperatures: approximately 15 °C cooler behind the intercooler compared to the standard solution under the same conditions.
-

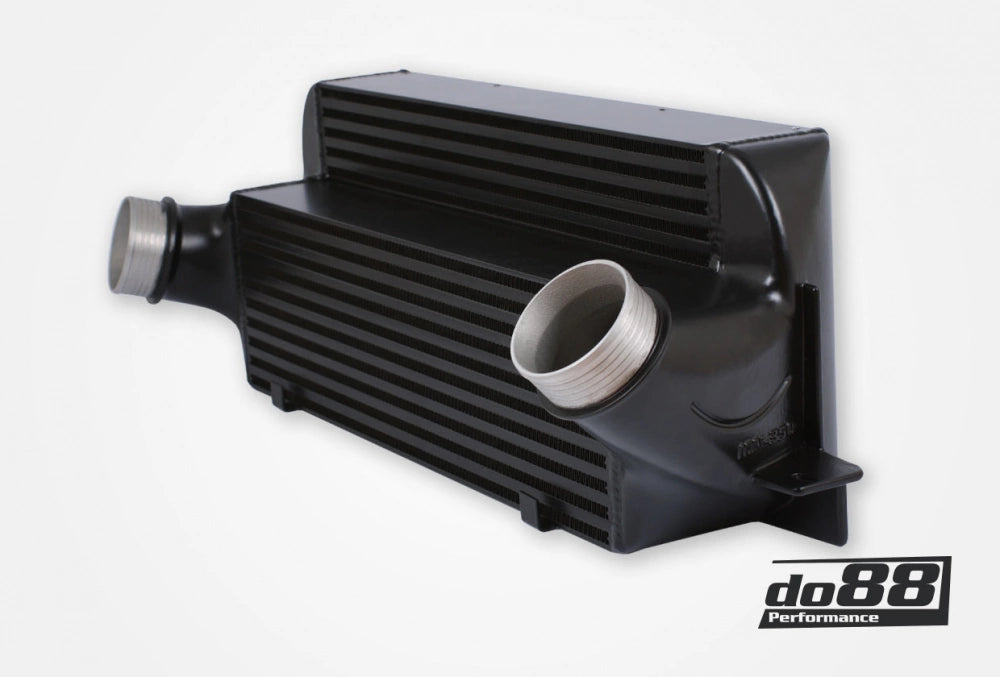

High-quality construction: Made entirely of aluminium with continuous welds for high reliability and durability.
-

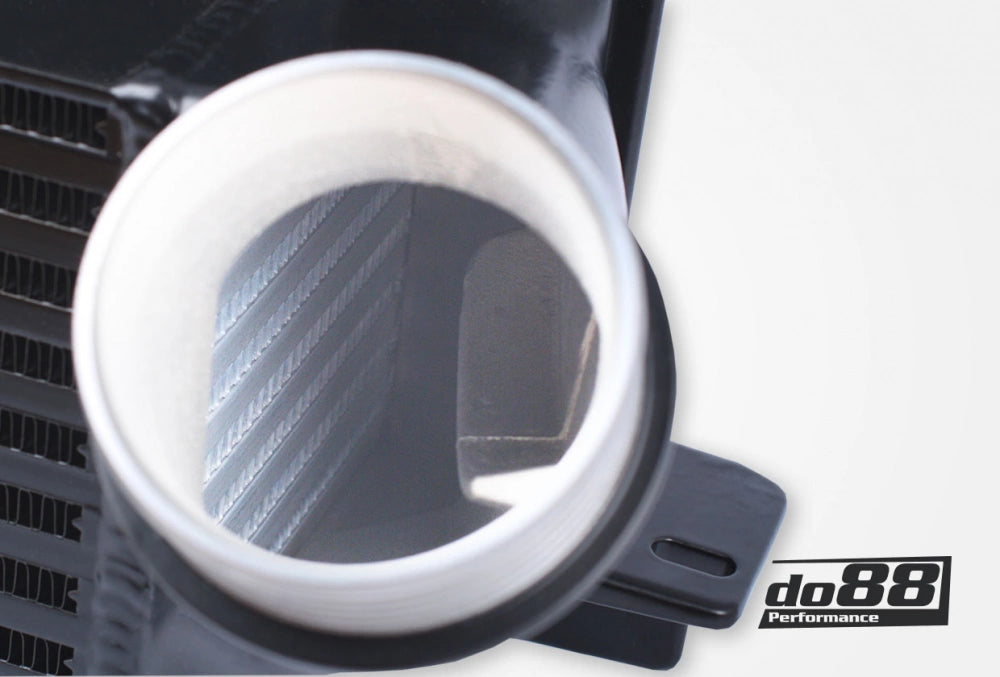

Redesigned connections: Conventional Ø3″ (76 mm) hose connections , plus reinforced silicone hoses and a mandrel-bent aluminum J-pipe to improve flow and reliability.
-
An additional plastic air deflector is included to optimally direct the airflow over the core.

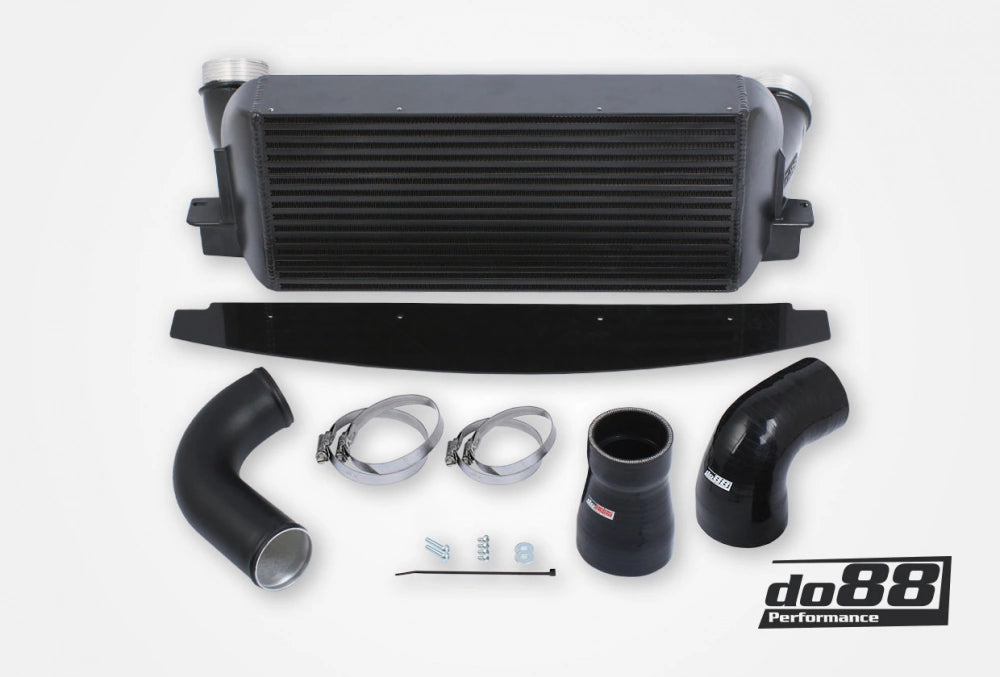

Scope of delivery (according to installation PDF):
-
do88 Performance Intercooler
-
Intercooler inlet silicone hose
-
Intercooler outlet silicone hose
-
J-pipe (charge air pipe)
-
Plastic air deflector
-
4x hose clamps
-
2× Torx T30 screws (thermoplastic)
-
4× Sheet metal screws (with Phillips head)
-
2× M6 washers
-
1× cable tie
Suitable for:
-
BMW 1-Series E82 / E88 (135i, 135is, 1M)
-
BMW 3-Series E90 / E92 / E93 (335i, 335xi, 335is)
-
(partially also fits Z4 35i/35is – depending on the vehicle year/engine)
